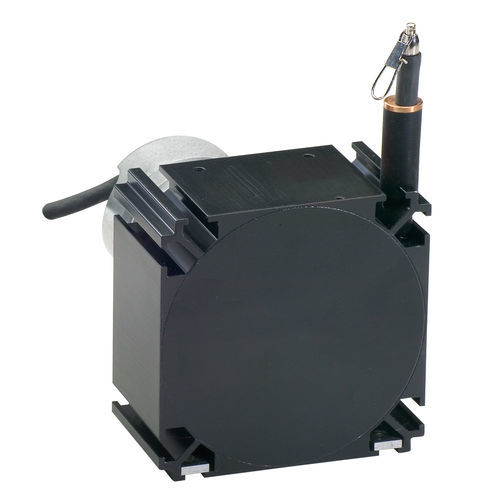

Draw-wire displacement sensor wireSENSOR WDS-P96potentiometeranalog outputdigital output
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- potentiometer
- Output signal
- analog output, digital output, with potentiometric output, Ethernet, SSI, CANopen, ProfiNet, PROFIBUS
- Measurement object
- metal, transparent, reflecting, organic
- Protection class
- IP65
- Applications
- industrial, OEM applications, rugged, for general purposes, for small spaces
- Other characteristics
- compact, rugged, precision, absolute, stainless steel, incremental, rectangular
- Measuring range
Max.: 3,000 mm
(118.11 in)Min.: 2,000 mm
(78.74 in)- Linearity
Max.: 0.1 %
Min.: 0.02 %
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Overview
P96 draw-wire sensors can be used universally. Numerous options enable a suitable sensor to be selected for almost any application. Various measuring ranges and digital output types facilitate fast integration for many application areas.
wireSENSOR WDS-P96 (analog and digital)
P96 series is available in analog and digital versions for extended measuring ranges and versatile outputs.
P96 draw-wire sensors can be used universally. Numerous options enable a suitable sensor to be selected for almost any application. Various measuring ranges and digital output types facilitate fast integration for many application areas.
wireSENSOR WDS-P96 (analog and digital)
P96 series is available in analog and digital versions for extended measuring ranges and versatile outputs.
- P96 analog — Measuring ranges (mm): 2,000 | 2,500; Linearity: ±0.1 % FSO; Output types: potentiometer, voltage, current; Aluminum housing; Easy and flexible mounting
- P96 digital — Measuring ranges (mm): 3,000; Linearity: ±0.02 % FSO; Output types: incremental or absolute encoder; Aluminum housing; Easy and flexible mounting
