Linear displacement sensor mainSENSOR MDS-35/-45non-contactmagnetic-inductiveanalog output
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- magnetic-inductive
- Output signal
- analog output
- Measurement object
- metal
- Protection class
- IP67, IP65, IP68
- Applications
- industrial, OEM applications
- Other characteristics
- compact, high-precision, stainless steel, miniature
- Measuring range
Min.: 35 mm
(1.38 in)Max.: 45 mm
(1.77 in)- Linearity
Min.: 3 %
Max.: 5 %
- Supply voltage
Min.: 11.5 V
Max.: 30 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)
Description

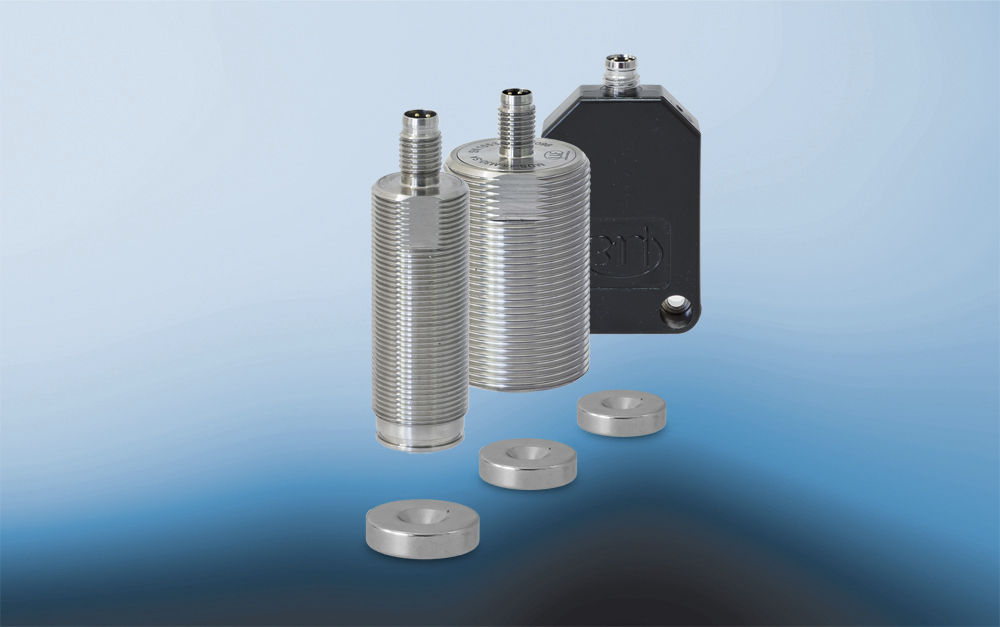

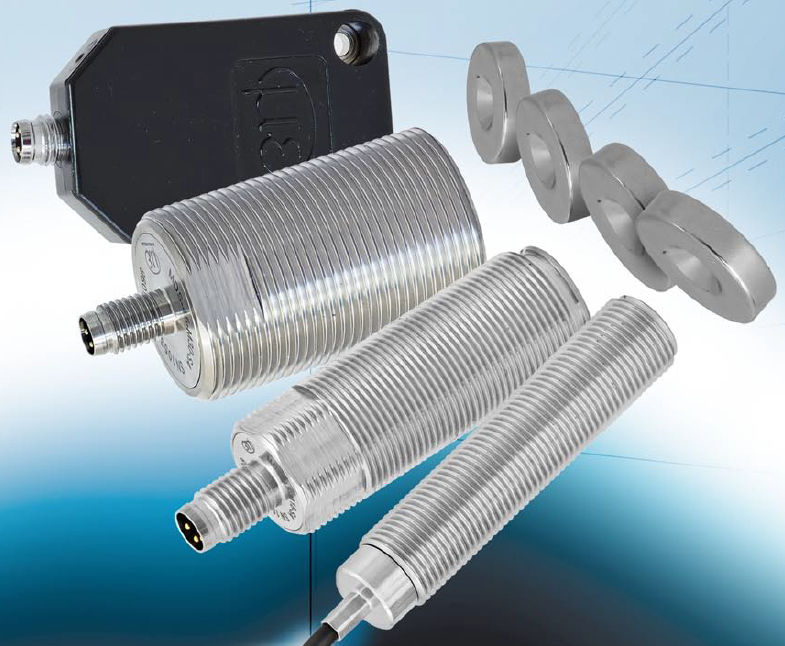

Due to their flexible concept, the sensors are ideal for a wide range of applications, particularly where high volumes are required. The standard sensors are designed in a stainless steel M18 and M30 or a flat plastic housing suitable for industrial applications. In high volume production, customer-specific modifications to the plate and sensor housing can be easily achieved.
VIDEO
Catalogs
No catalogs are available for this product.
See all of MICRO-EPSILON‘s catalogsOther MICRO-EPSILON products
Magneto-inductive distance sensors
