Magnetic-inductive displacement sensor MDS-40-LPlinearnon-contactanalog output
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- magnetic-inductive
- Output signal
- analog output
- Measurement object
- metal
- Applications
- industrial, OEM applications
- Other characteristics
- compact, rectangular, flexible
- Measuring range
40 mm
(1.57 in)- Linearity
Min.: 6 %
Max.: 9 %
- Supply voltage
Min.: 3.6 V
Max.: 5.3 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)
Description

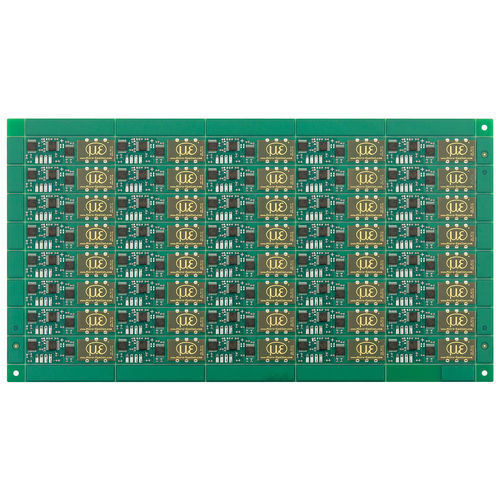

Magneto-inductive displacement sensors in circuit-board version
The MDS-40-LP sensors are specially designed for large volume production from 2,000 pieces or more. As these sensors are reduced to pure measurement technology, the creation of cost-effective PCB sensors was possible. Their flat design and flexible arrangement of the magnets allows easy integration in restricted spaces. Measured values are output via a rectangular signal, which is easily evaluated via, for example, digital inputs from micro-controllers.
