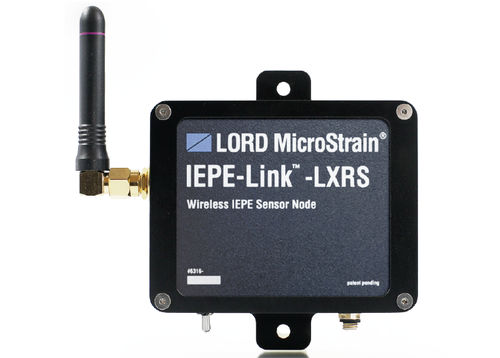

Vibration detector IEPE-Link™ -LXRS®

piezoelectricheavy-dutydigital

Delivering 24-bit resolution and up to 104 kHz sample rates, the IEPE-Link™ -LXRS® Wireless IEPE Sensor Node is designed for high-speed vibration sensing in challenging applications. Ideally suited for critical structure and machine health monitoring, IEPE-Link™ works through periodic burst sampling with ultra low noise, high sensitivity IEPE (Integral Electronic Piezoelectric) accelerometers. It features 109.5 dB of dynamic range, 1 kHz to 104 kHz sampling rates, ± 32 μseconds network burst synchronization, and user selectable low pass filtering. Globally recognized, license-free IEEE 802.15.4 radio communications provide up to 2 kilometers (line of sight) range with host gateways. Small, rugged, and easy to use, the IEPE-Link™ is packaged with a rechargeable high-capacity battery, and Node Commander® software for outof- the-box use with user supplied IEPE accelerometers. Sign up for a free SensorCloud™ account to have seamless connectivity between your IEPE-Link™ and the cloud.
