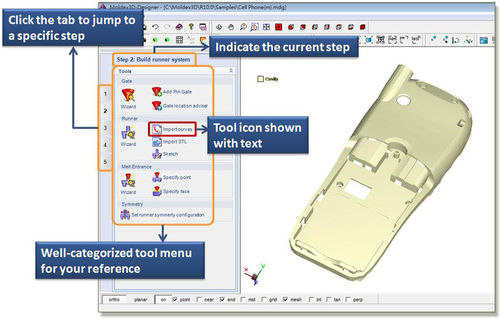

Designer Moldex3D Designer provides a complete series of powerful pre-processing tools, including automatic mesh generator and intelligent modeling wizards, to help users create True 3D mesh models efficiently and easily setup a variety of simulation conditions, such as gates, runners, cooling channels, etc., with proper user friendliness and efficiency. With Moldex3D Designer, designers are able to verify and optimize design changes more effectively and more flexibly. Intuitive User Interface The easy-to-navigate user interface provides a consistent logic to guide users to access to the simulation workflow step by step. It highly improves the functionality and shortens users’ learning curve. With only a few clicks needed, users can complete the full pre-processing preparation easily and efficiently. Various Gate Types Moldex3D Designer provides various gate types in Gate Wizard, including pin gate, sprue gate, edge gate, fan gate, etc. Using the gate-aware Runner Wizard, users can build single or multiple gates quickly and consecutively. Additionally, users can apply Gate Location Advisor to setup one or more appropriate gate locations according to the part geometry. Enhanced Runner Wizard The Runner Wizard supports a variety of runner types, including runner cross section types, to better describe the real runner geometry with True 3D solid mesh. It also allows to use curve objects as runners and to construct a complete runner system with mixed STL topology and runner lines.
