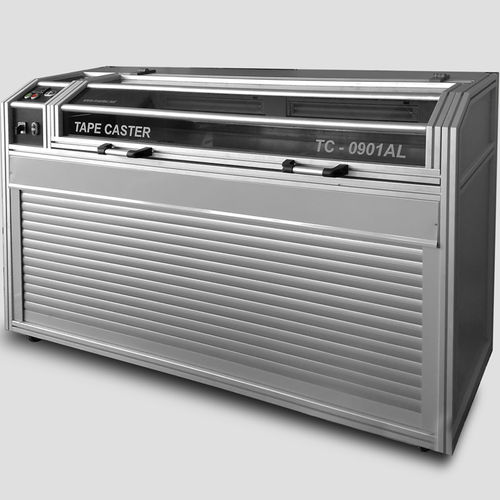

Film casting machine TC series

Tape Casting is routinely used in production of thick films (as low as 10 m to as thick as 1 mm). Aqueous or organic solvent tape cast slurries are prepared and spread over a carrier surface (glass or polymer) using a precisely controlled Dr. blade. The blade can be used either stationary or moving. Drying occurs by evaporation of the solvent to produce a tape and must be done in a controlled atmosphere. MSE Technology’s Tape Caster offers a complete system which incorporates casting with a moving blade on various substrates and a drying chamber with a temperature control. Also, the system is equipped with a tempered glass view port that is removable for product easy access. Features •0 – 20 cm/sec adjustable speed •Automatic stop and sensitive motion •Illuminated and scaled glass casting substrate •Casting board resistant to chemicals •Digital speed display •Glass cover to protect casting surface from dust and air stream •5-micron sensitive doctor blade Optional Features •Heating System •Drying System •PC Control •Double Dr. Blade assembly •Casting storage cabinet, electrically operated cabinet door
