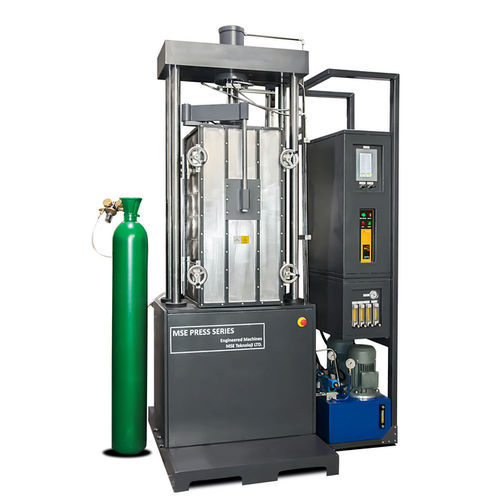

Electro-hydraulic press

manually-controlledformingjoining

It is suitable for high-density technical ceramic materials such as SiC, Si3N4, BN, Al2O3-TiC / TiN, AIN which we have developed according to the requirements of our customers, composite materials such as CMC, MMC and sintering in powder metallurgy and similar processes of hard metal materials. While increasing the material density by the compression of the adjustable pressure force, it is possible to increase the material density by using the metal (TSE ISO 22068), ceramic (TS ENV 13235, TS ISO 15490, TS EN 658-1, TS EN 820-1) with sintering application at the temperature between 500-2200 ⁰C, and ballistic armor materials CEN 1063, EN 122, CEN-BR4, developed in defense industry (MIL-A-12560, MIL-A-46100, MIL-DTL-12560, MIL-D- , NIJ 0108.01 standards. These presses are produced in different models with capacities of 800C, 1200C, 1500C, 1800C and 2200C. STANDARD FEATURES •*** Maximum operating temperature: 1100 ° C •*** Maximum press area diameter: 250 mm •*** Stroke distance: 150 mm •*** Adjustable pressing force of 0-30 tons, •± 30 kg force accuracy, •Temperature accuracy ± 2 ° C, •Ability to read continuously applied pressure, press time and control, position control via a display, •The traceable press distance, •Electronic security system, •Emergency stop button, Siren warning system, •The ability to press the same product each time, •Vacuum and atmosphere controlled, •Mechanical vacuum device and digital indicator which can reach a vacuum level of 10-1 mbar, •PID controlled heating, •Cooled hydraulic system, •4-column, •Epoxy shippimer painted oven,
