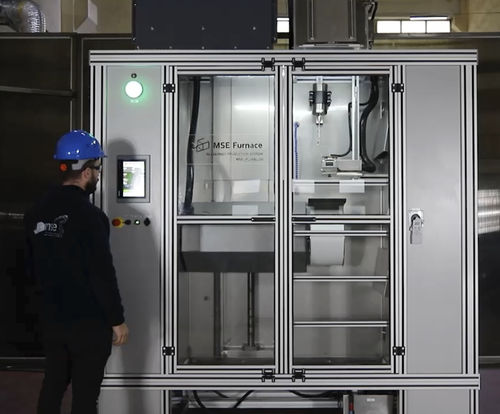

Glass fiber production furnace

cabinetmeltinginduction

Glass fiber production system is designed to homogeneously melt the various raw materials at high temperature and then convert this melt into glass fibers. With the temperature, the melted glass is pulled and winding on the reel. The reel automatically winds fiber. When the melt is finished, the melting crucible is cleaned and new refilled with glass. MSE designs and manufactures up to 1450°C in different nozzle diameters and induction heated glass fiber production systems without sacrificing safety and quality upon customer demand. STANDARD FEATURES Touch screen adjustable temperature, time and fiber winding speed (0-1 meter / min) Infrared temperature sensor Automatic temperature control Aluminum construction structure, Glass cabinet for observation and protecting Servo controlled Five nozzles Induction heating Nozzle diameter between 1.3 - 1.6 mm Replaceable crucible Automatic temperature control of ± 1 ° C System protection in case of temperature exceeding, audible and visual warning alarm Error display in case a breakdown Able to see the proportional power consumption and power can controllable Electronic security system, emergency stop button Sliding winding system Height adjustable, non-slip rubber feet.
