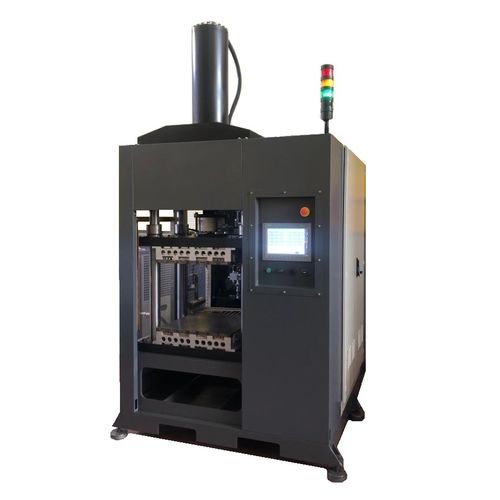

Forming press
automatichotwater-cooled

forming press
forming press
Add to favorites
Compare this product


Characteristics

Function
forming
Control
automatic
Other characteristics
hot, water-cooled, for composite materials

Description

AUTOMATIC HOT PRESS / COMPOSITE PRESS (*) Max.Temperature: 450 ° C Heating: with resistance Cooled: air and water-cooled (*) The heating rate of the device: Maximum 15 ° C / min, minimum 1 ° C / min. (*) Cooling Rate of the Device: Maximum 15 ° C / min, minimum 1 ° C / min. (*) Force Capacity of the Device: Maximum 50.000 kg (*) Plate Dimensions of the Device: 550 x 550 mm (*) Mould Connection Dimensions of the Device: 450 x 450 mm (*) Stroke Distance of the Device: Maximum 700 mm Working Speed ​​of the Device: 1-100 mm / s Force Sensitivity of the Device: ± 10 kg Load Reading Accuracy of the Device: 5 kg Position Accuracy of Device: 0.01 mm Position Reading Sensitivity of the device: 10 microns with magnetic encoder Other System Information: The device has the automatic force and temperature programming. Plates are separately heatable. Press has got 4 main heating sections. Totaly it has got 32 controlled heating area in the top and bottom. Thus, more homogeneous heating is provided. Device Weight: ~ 3 Tons Installation Area of ​​the Device: 2500 m x 2500 mm External Dimensions of the Device WxHxD: 1735 * 2,989 * 1879 mm Electrical Power and Connection of the Device: 95 kW, 3 P + N + G. Programmable - PID heating - Adjustable temperature - Adjustable force - Graphic display - High-temperature alarm - Water temperature, force pressure, warning and alarm system - Process log can be viewed - Record data on screen and display& data via WiFi - Screen password - Error display in case a breakdown
