Rotary paddle level switch

for bulk materialsfor chemicalsflange

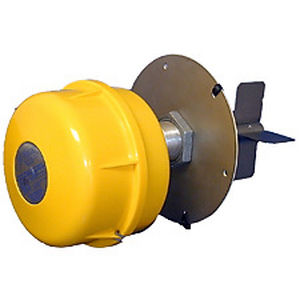

For specific point indication the Rotalog Paddle Switch is second to none. Thousands are in operation giving this unit a reputation for being reliable, durable and effective. Three main models are available, in a range of voltage and paddle options to suit any level indication requirements. The Rotalog rotary paddle switch by Mucon is designed to signal the presence, or absence, of bulk materials such as powders, chemicals, chips and granules. It is ideal for hoppers, silos and bunkers as well as for blockage detectors on conveyor chutes. The detection of the material is achieved by a paddle which is rotated inside the container; if material impedes the rotation of the paddle, the control signal changes and after approximately half a second the motor circuit switches off. In this state all active parts are stationary; therefore no wear takes place Model 2 High Level Side mounting, 4-vane paddle with rubber moulded flexible coupling and shaft seal (Nominal shaft length 140 mm) Construction 316 Stainless Steel contact parts ABS Body IP65 Sealing
