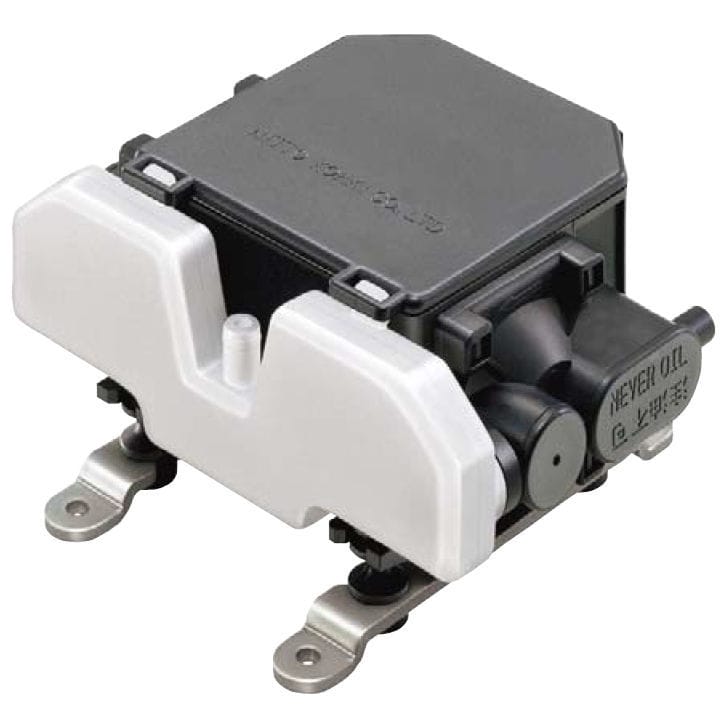

Linear diaphragm pump
max. 10 l/min, 0.18 bar | VC 0101 series Nitto Kohki Deutschland

Attainable Vacuum -100 mbar (230 V)
-187 mbar (120 V)
Rated Airflow 10 l/min
Rated Voltage 230 V
120 V
Maximum Pressure 0.15 bar (230 V)
0.18 bar (120 V)
Rated Pressure 0.1 bar
Power Consumption 11 W
11 W
Rated Frequency 50 Hz
60 Hz
Live Expectancy 5.000 h
Working Pressure Range -100 mbar to 0.15 bar (230 V)
-187 mbar to 0.18 bar (120 V)
Outlet (Inlet) 7.5mm O.D. hose nipple
Duty Cycle Continuous
Coil Insulation Class B for 230V & A for 120V or its equivalent (JETL)

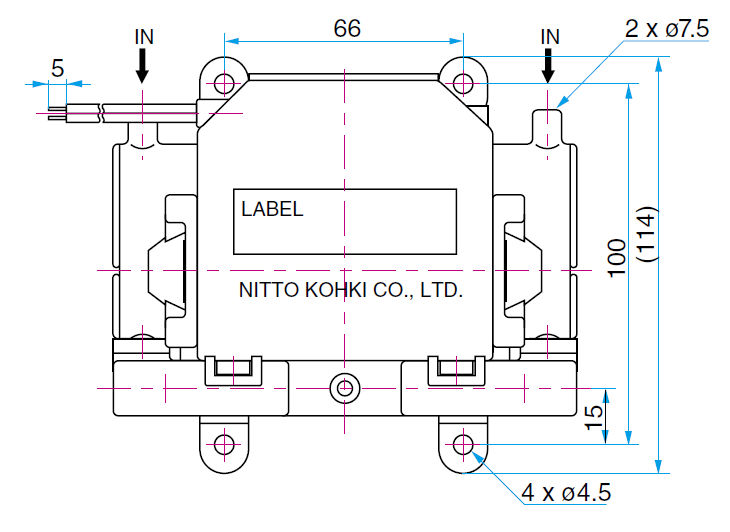

Mounting Dimensions (L x W) 66 x 100 mm
Gross Weight 0.82 kg
Leadwire Length 200 mm
