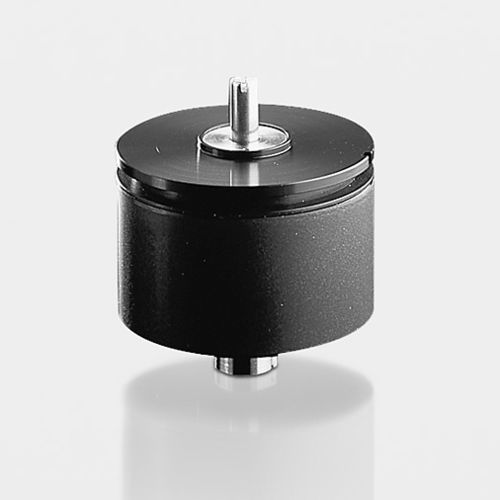

Rotary position sensor IPE-6000

conductive plastic potentiometermetalIP65

Absolute high-precision potentiometric rotary sensor. Robust and sealed design with current interface High-precision potentiometric rotary sensor. Robust and sealed design with current interface On the basis of the tried andtested IP 6000, this precisionangle encoder is equippedwith a signal interface integrated in the case. It has nowbeen fitted with an electronicsystem using SMD technologyfor control of the supply voltage and transformation ofangle-proportional voltage intoan output current.This ensures optimum interference immunity in signaltransmission even over longcable distances.The electronic system integrated into the potentiometerreplaces an external transformer and supplies an optionalstandardized output current of0...20 mA or 4...20 mA. Thewide operating votlage rangepermits upply from an unstablised DC source. The housingis in compliance with protection class IP 65 with the conformable plug and is particularly suited to stringent require-ments in the machine, plantand vehicle design sector. Theprecision ball bearing is designed to withstand highmechanical strains.In order to ensure the EMV,the cable shielding must beconnected with the housingvia the plug. The shieldingconnection can take placegalvanic or by a couplingcapacitor towards ground. • standardised output currentover 90/345°• output current selection0...20 mA or 4...20 mA• electronic system integratedin the case• very good absolute linearity± 0.1 % (345°) or ± 0.3 %(90°)• very high repeatability0.007°• unrestricted continuousrotation• Protection class IP 65
