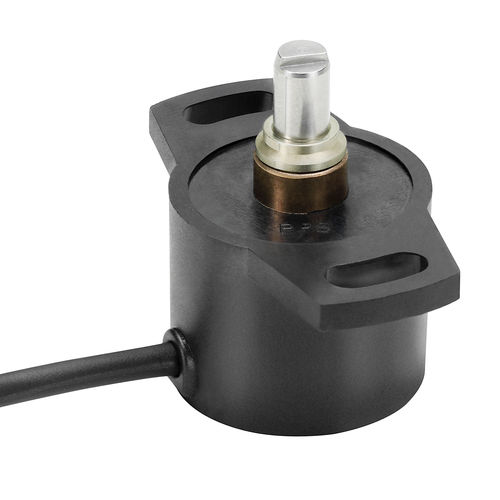

Rotary position sensor RSC-2800

non-contactmagneticanalog

Non-contacting NOVOHALL Rotary Sensor for use in harsh environments. Large selection of analog and digital interfaces. Highly accurate and very attractively priced. • Non-contacting, magnetic technology • Measuring range up to 360° • Available with push-on coupling or marked shaft • Simple mounting • Protection class IP54, IP65, IP67 • Long life • Very small hysteresis • High resolution 12 bits • Linearity < ±0.5 % • Other configurations see separate data sheets • Manufacturing Engineering (textile machinery, packaging machinery, sheet metal and wire machinery) • Automation technology • Medical engineering The RSC-2800 sensor utilizes a contactless magnetic measurement technology to determine the measured angle. Unlikeconventional Hall sensors, the orientation of the magnetic field is measured. The position information corresponding to theangular position is transmitted via a variety of analog and digital interfaces (see separate data sheets).The housing is made of a special high grade temperature-resistant plastic material. Elongated slots allow simplicity in mountingtogether with ease of mechanical adjustment.Three shaft options are available, including a push-on coupling option that ensures fast and simple installation.
