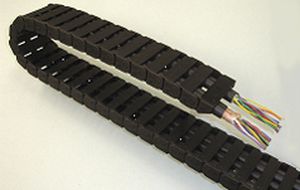

Chemical-resistant electrical cable OR Series

copperfor roboticsflexible

Super bending performance In order to greatly increase the bending performance, a newly developed special elastomer is used for the insulation. The excellent sliding performance, hardness, and toughness of this material realizes super bending performance which is one rank higher than that of a conventional high bending cable that uses fluorine-based insulation. Conductor The conductor uses a special copper alloy for improved bending resistance and twisting resistance. Sheath The sheath is made of polyurethane resin for improved wear resistance, mechanical toughness including resistance to exterior damage, and resistance to oil and chemicals. As a result, the cable is suitable for applications in the FA field where the working environmental conditions are severe. Braided shield A highly bendable type special shield material is used in order to improve the life of the shield. Also, this material is softer and more flexible than a general copper braided shield. Standards This cable uses a highly fire retardant polyurethane sheath, enabling it to be certified as conforming to the UL VW-1 fire retardant standard. This cable conforms to the RoHS standard.
