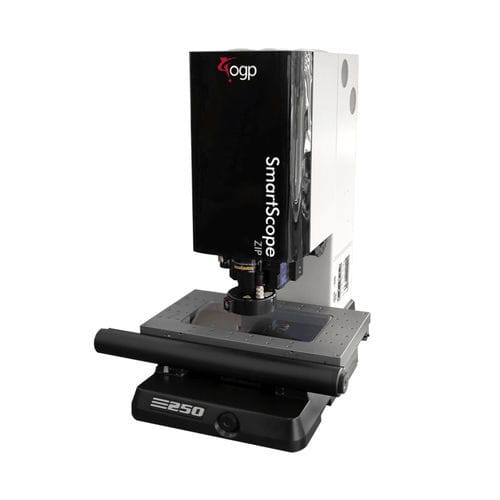

Optical measuring instrument SmartScope ZIP 250

3Dbenchtopvideo

SmartScope ZIP® 250 sets a high standard in benchtop metrology. This durable system features fast stage speed for maximum throughput and short cycle times, without sacrificing accuracy. A heavy duty cast base with Y-axis center drive assures metrological stability. ZIP 250 also offers: Accurate video metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position Reliable & Precise – Heavy-duty cast base and integral compound stage with Y-axis center drive for stability Multisensor versatility – Optional touch probes, lasers and micro-probes Optics Standard AccuCentric® auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube Optional Focus Grid Projector: LED or Tungsten fiber-optic sources Laser Adapter: Allows for field retrofit of TTL laser. Included Laser Pointer Replacement Lenses: 1.0x Long Working Distance (LWD), 2.5x, 5.0x Laser Lenses: 2.0x (included with TTL Laser), 5.0x Lens Attachment for 1.0x Lens: 0.5x, 0.75x, 1.5x Factory Installed Adapter Tubes: 0.67x, 2.0x Illumination Standard Substage LED profile, coaxial LED surface, SmartRing LED ring light (white) Optional Coax Light: Tungsten Fiber-Optic Ring Lights: Red, Green, or Blue SmartRing; Standard or Low Incidence VuLight; Tungsten Fiber-Optic Ring mounted below, integrated with, or in lieu of SmartRing
