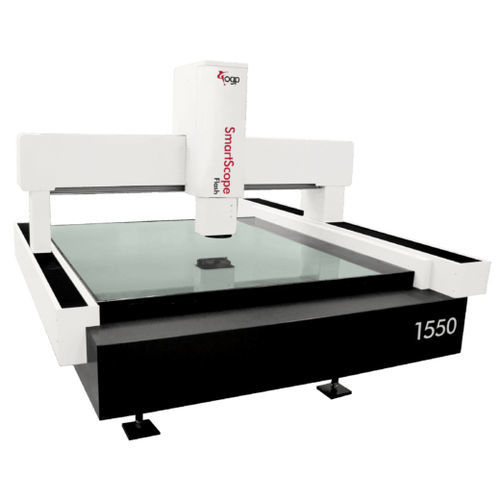

Multi-sensor measuring machine SmartScope® Flash™ 1500 series

laseroptical3D

SmartScope® Flash™ 1500 |1550 | 1552 are floor model 3D multisensor measurement machines with an extended XY measuring range where the instrument head moves in the X axis across a steel bridge while the entire bridge moves on parallel tracks in the Y axis. The large measurement range of these systems accommodates large parts, such as LCDs, plasma displays, circuit boards, and multi-component fixtures. Open work area – Optics mounted on a moving bridge — part remains stationary and easily accessible Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles Multisensor versatility – Optional touch probe and laser sensors Optics Standard AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens Optional Focus Grid Projector: LED Source Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer Replacement Lenses: 2.5x, 5.0x Laser Lenses: 2.0x (Included with TTL Laser), 5.0x Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x Illumination Standard Substage LED profile, coaxial LED surface, SmartRing LED ring light (white) Optional Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment
