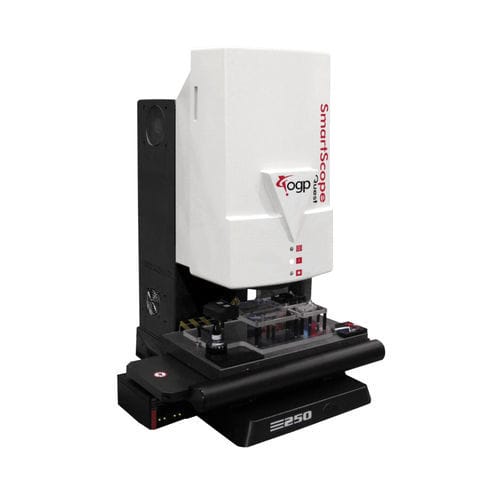

Optical measuring machine SmartScope Quest 250

3Dvideointerferometric

SmartScope® Quest™ 250 is an advanced-technology 3D multisensor measurement system. This benchtop system is specifically designed to measure smaller parts, or for situations where space is at a premium. Its rigid structural design provides full access to the measurement volume for fixturing flexibility. Quest 250 offers: Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement Multisensor versatility – Optional touch probe, off-axis DRS™ laser or on-axis TeleStar TTL interferometric laser, micro-probes, and SP25 continuous contact scanning probe Optics Standard 10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens Optional Focus Grid Projector: LED source Replacement Lenses: 0.5x, 2.0x, 4.0x Laser Lenses: 0.5x, 2.0x, 4.0x Illumination Patented high performance substage monochromatic profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
