threaded insert / steel / round / for plastics
MOLD-FORM™ PSM International

{{requestButtons}}

Characteristics

  • Type:

    threaded

  • Material:

    steel

  • Configuration:

    round

  • Applications:

    for plastics

Description

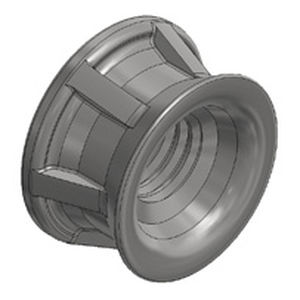

MOLD-FORM is a high strength, low cost, cold formed steel INSERT for PLASTIC, designed for molding-in, giving a cost saving of up to 50%. Simply located on a pin and closed off by the opposing tool faces, it gives a clean flash free installation. Six large splines provide exceptional direct torque resistance, the head and the opposing flared-end resist high axial forces.

Advantages :
• Cost saving of up to 50% compared with machined steel equivalent
• Exceptional direct torque resistance
• Large flange and opposing flare provide high pull/pull-out resistance
• Designed for simple installation by molding-in
• Flash free
• High strength property class 8
• Cold formed splines, eliminate metal chips associated with knurling
• Lead free
• High corrosion resistance >380 Hours
