Threaded insert

brasssteel

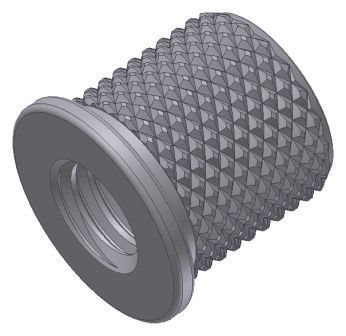

HEADED STEEL INSERT This M6 headed steel insert is used on Oil Filter Unit and replaces a high cost brass machined part. The demanding nature of the application requires high performance inserts. The insert has a special knurl pattern that was developed with the customer, allowing it to be rolled after cold-forming and meet a high torque and pull-out requirement. Special ZnNi plating developed by PSM. Advantages : • Significant cost saving • Cold formed and rolled steel part • Reduced metal chips compared with machining • Steel provides increased thread strength • 200 hours to white, salt spray resistance • Steel being magnetic, can assist auto-feeding • Pull-Out 8kN, Max Torque 30Nm
