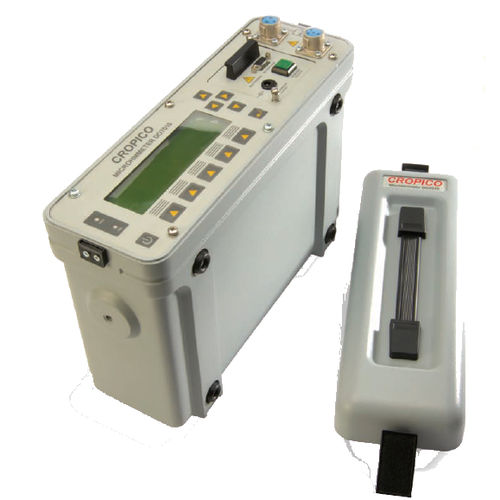

Digital microhmmeter DO7010

portablelow-resistance4-wire

Rugged portable digital microhmmeter - High accuracy ranges from 6millohms to 6ohms. - Small light weight unit 4kg with NiMh rechargeable batteries - Data logging with up to 1,000 readings stored with date and time stamp. The DO7010 portable micro ohmmeter is a practical instrument for low resistance and bonding resistance measurement, ideal for aerospace utillities in the workshop, or test facilities. It is of rugged construction, contained in a sealed case. The DO7010 micro ohmmeter has many advanced features including, auto ranging, auto power off, auto measure trigger when leads are connected to the DUT, data logging, replaceable battery pack, Hi-Lo limits. To ensure that downtime is minimised the battery pack can be easily and quickly withdrawn from the front panel and replaced with a fully charged unit. Battery charge indicators are provided. Technical specification Measurement4 Terminal Kelvin/Thomson principle eliminates error due to lead resistance. Open circuit measurement voltage =5V dc Display240 x 64 dot Graphics with backlight, 3 language selection Ranges4 ranges auto or manual selection BatteryNiMhd battery pack that can be quickly and easily replaced with a fully charged unit. External charger TerminalsThe measurement leads are connected via Jaeger connectors Working Temp0...50°C rel. humidity 80% max. non-condensing Storage Temp-20...+50°C SafetyConforms to EN61010-1
