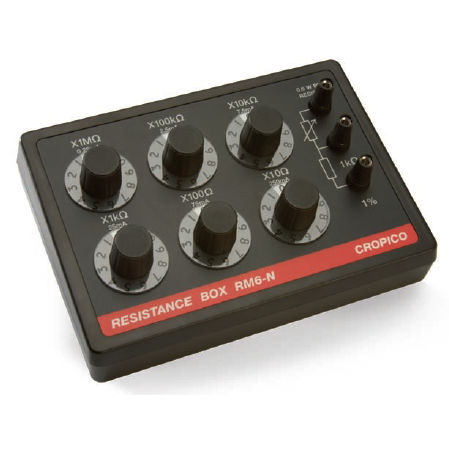

Resistance decade box RM6N series

Compact 6 decade resistance box with wide range - 6 Decades - Range 1Ω to 100MΩ - Accuracy 1% RM6N, RM6 N2, RM6 N3 Resistance Decade Total Resistance 11.1111Megohm, Resolution 10Ohms The RM6-N is a space and cost-saving 6 decade resistance box . 3 models are available covering the range 1ohm to 111.111 Megohm. An additional 1kohm resistor is available at the terminals enabling the user to make a simple divider. The RM6-N incorporates 0.6 watt metal film resistors with a specified accuracy of ±1%. The maximum permissible voltage is 250V d.c. The RM6-Ns constitute an ideal tool for use in all electrical and electronic laboratories or workshop environment offering a wide range of values with minimum cost.
