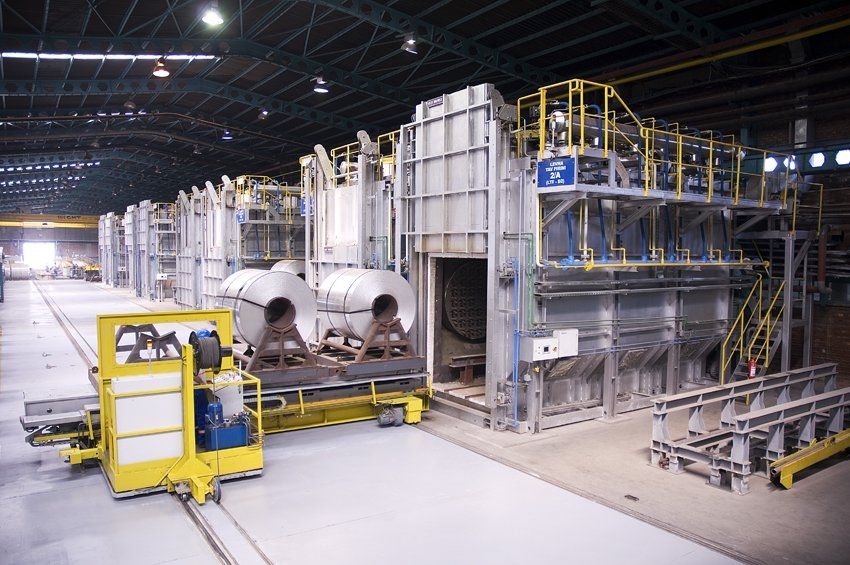

Chamber annealing furnace for aluminum coil
SECO/WARWICK S.A.

SECO/WARWICK provides custom engineered aluminium coil and foil annealing furnaces with capacities ranging from single coil modular furnaces to multi-zone furnaces with tight zone control. We have the experience, knowledge and talent to manufacture efficient furnaces with exceptional temperature uniformity and unique charging techniques to fit the most demanding application.
SECO/WARWICK continues to develop technologies to improve equipment performance and efficiency. Two significant improvements for coil/foil processing include:

* Mass Flow design to protect load surfaces that are vulnerable to damage during high atmosphere flow. Dedicated for foil heat treatment.
o +/-5°C guaranteed uniformity in the load area
o Gas or electric heated
o Various types of atmosphere can be used - Air/Nitrogen/Exo
o Provides for fast heating times
o Enables charge loading in levels

* Vortex ® Flow Jet Heating System - nozzle system that reduces cycle time by taking advantage of the high heat transfer produced through convection heating. Mainly dedicated for Al sheet
o Fast and uniform heating of the load
o Heating time reduction in comparison to other systems
o Lack of overheated points
o +/-3°C guaranteed uniformity for soaking time
