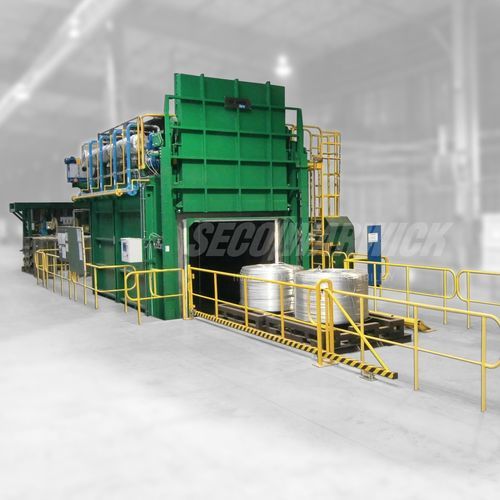

Chamber furnace

rollerannealingdrying

Comprehensive aluminum aging and annealing solutions for the aluminum industry
Various loads need various solutions. Therefore SECO/WARWICK implemented::

/ Mass Flow design, especially for foil annealing where the surface of the load is vurnerable for damages during high atmosphere flow.

/ Vortex Flow jet heating system, for coil annealing when the advantage of high heat transfer can be used.

SECO/WARWICK provides custom engineered aliminium coil and foil annealing furnaces with capacities ranging from single coil modular furnaces to multizone furnaces having tight zone control. We have the experience, knowledge and talent to manufacture efficient furnaces. With exceptional temperature uniformity and unique charging techniques to fit the most demanding application.


Comprehensive aluminum aging and annealing solutions for the aluminum industry
Various loads need various solutions. Therefore SECO/WARWICK implemented::

/ Mass Flow design, especially for foil annealing where the surface of the load is vurnerable for damages during high atmosphere flow.

/ Vortex Flow jet heating system, for coil annealing when the advantage of high heat transfer can be used.

SECO/WARWICK provides custom engineered aliminium coil and foil annealing furnaces with capacities ranging from single coil modular furnaces to multizone furnaces having tight zone control. We have the experience, knowledge and talent to manufacture efficient furnaces. With exceptional temperature uniformity and unique charging techniques to fit the most demanding application.

Industrial-grade aluminum aging and annealing furnaces engineered for coil, foil and profile processing. Configurations range from single-coil modular units to multizone continuous systems. Available airflow concepts include Mass Flow for delicate foil and Vortex Flow jet heating for high transfer rates in coil annealing. Furnaces are designed for tight temperature uniformity and dedicated loading systems to match customer baskets and production flow.

Designs

• Mass Flow concept for wire, profile and foil (
• Furnaces supporting T77 process heat treatment
• Continuous roller hearth furnaces for high-throughput production
• Scrap dryers with container-compatible hearths
• Stress-relieving furnace configurations

AMS and CQI-9 compliant aging furnaces
Chamber aging furnaces engineered to meet AMS and CQI-9 pyrometry and material requirements. Control systems are prepared for NADCAP adaptation and supplied with certified thermocouple modules. Furnaces are custom-sized to customer load baskets; dedicated loading cars and two-door constructions are available for continuous or batch workflows. T77-capable aging furnaces support multi-stage and multi-ramp profiles. Design targets include approximately ±10% air flow uniformity across the working zone and mineral insulation with long service life.

Scrap drying furnaces
Cost-effective scrap-drying solutions offered in Class 2 or Class 3 variants. Hearths are adapted for forklift container loading, with simple recirculation via centrifugal fans and water-vapor evacuation. Heating employs compact, replaceable elements and local controllers mounted on the furnace. Doors are manual for straightforward operation.

Features

• Multiple convection patterns selectable by load configuration and orientation (horizontal or vertical)
• Wide working temperature range
• Thermocouple accuracy: Class 1 (±1.5°C) or AMS-dedicated (±1.1°C)
• Temperature uniformity: ±2°C in Class 1 furnaces
• Siemens or Allen Bradley PLC options with certified thermocouple modules for integrated, traceable data logging
• Data archive and trending from 0.1°C resolution with 1 s sampling

Advantages

• High-convection Vortex Flow jet heating for improved coil surface temperature uniformity
• Shorter heat-up times while avoiding local overheating
• Improved uniformity of material properties and reduced risk of local cracking of milling oil
• Lower electrical fan power due to optimized flow despite increased volume throughput

Industries

• Aerospace
• Automotive
• Energy

Additional features

• High-efficiency auto-recuperator burners (efficiency up to ≈86%) with exhaust heat recovery for nitrogen heating
• Option for ecological, biosoluble insulation with thickness selected to optimise wall losses

Caractéristiques / spécifications techniques

• Mass Flow concept for foil (
• Vortex Flow jet heating for coil annealing (high heat transfer)
• Capacity range: single-coil modular furnaces to multizone furnaces with tight zone control
• Support for T77 process heat treatment and multi-stage/multi-ramp aging processes
• Continuous roller hearth furnace option for mass production
• Scrap dryer options (Class 2 or 3) with container-loading-compatible hearth
• Stress relieving furnace configurations
• ~±10% air flow uniformity across furnace (design target)
• Thermocouple accuracy: Class 1 ±1.5°C or AMS-dedicated ±1.1°C
• Temperature uniformity: ±2°C in Class 1 furnaces
• PLC options: Siemens or Allen Bradley with certified thermocouple modules
• Data logging and archive: 0.1°C resolution and 1 s sampling intervals
• Cold air injection system for low temperature heating
• High-efficiency recuperator burners (up to ~86%) and exhaust heat recovery for nitrogen heating
• Long-lasting mineral insulation; option for ecological biosoluble insulation
• Dedicated loading cars and unique charging techniques to match customer load baskets
