vertical balancing machine / dynamic / for brake discs / pulley

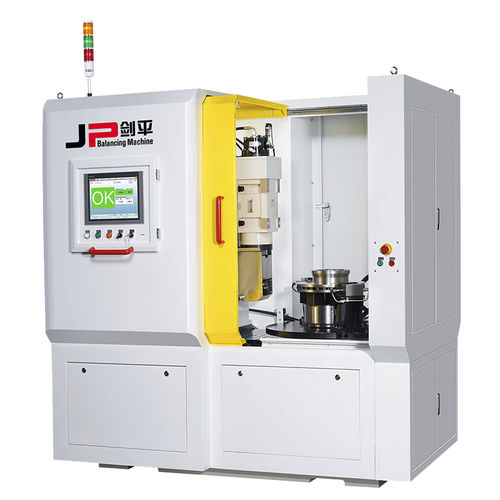

A1LX20 Shanghai Jianping Dynamic Balancing Machine

{{requestButtons}}

Characteristics

  • Orientation:

    vertical

  • Type:

    dynamic

  • Applications:

    for brake discs, pulley, torque converter, for clutch plates, brake drum, flywheel

  • Other characteristics:

    automatic, high-accuracy, single-plane, automobile, modular, compact

  • Weight on rotor:

    35 kg (77.2 lb)

  • Rotational speed:

    800 rpm, 900 rpm (5,027 rad.min-1)

Description

Automatic Vertical Balancing Correction Machines

1.Manual loading and unloading
2.15-inch touch screen
3.Advanced balancing measuring software
4.Automatic measure,automatic milling and correction,automatic retest
5.Rigidity structure design,with a longer use life
6.The machine is designed for the automatic balancing of disc-shaped parts in one plane


Data Rotors

Max Mass of Workpiece(kg):35
Max Diameter of Workpiece (mm):400

Balancing Unit Parameter
Spindle Speed (r/min):800
Motor Power(kw):2
Min Achievable Residual Unbalance Amount (emar):3g· mm/kg

Unbalance Correction

Maximum Milling Depth(mm):Depending on rotor
Maximum Milling Width(mm):Depending on rotor
Cutting Speed(r/min) :700
Cutting Spindle Motor Power(kw):2.2
Maximum Milling Angle(degree):0-75
Milling Cutter Range(mm):60-125

Machine Parameter

Power(kw) :10
Weight(ton):1.8
Dimensions(mm):900*2300*2030
Processing Period(s/pcs):30-50
