Capacitive level switch / for solids and liquids / compact
Pointek CLS100 Siemens Process Instrumentation

Characteristics

  • Technology:

    capacitive

  • Measured material:

    for solids and liquids

  • Other characteristics:

    compact

  • Level range:

    1 m (3' 4")

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145.04 psi)

  • Process temperature:

    Min.: -30 °C (-22 °F)

    Max.: 100 °C (212 °F)

Description

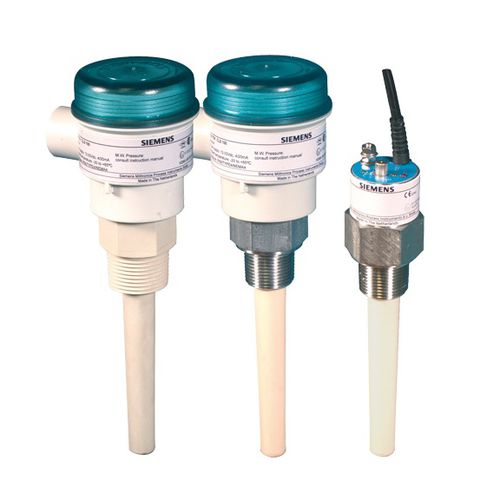

Pointek CLS100 represents a compact 2-wire inverse frequency shift capacitance switch applicable in constricted spaces, interfaces, solids, liquids, slurries and foam. The versatile Pointek CLS100 with a 100 mm (4") short insertion length supports various applications and in vessels or pipes thus proving it an replacement for traditional capacitance sensors. The series is equipped with advanced tip-sensing technology for accurate, repeatable switchpoint performance.

The PPS (Polyphenylene sulfide) probe [optional PVDF (Polyvinylidene Fluoride)] features distinguished chemically resistant characteristics with an effective process operating temperature range from -30 to +100 °C (-22 to +212 °F) (7ML5501), and -10 to +100 °C (+14 to +212 °F) (7ML5610). The probes fully potted design ensures high reliability in vibrating environment such as agitated tanks up to 4 g. The CLS100 in combination with SensGuard protection cover protects the probe from shearing, impact and abrasion in tough primary processes.
