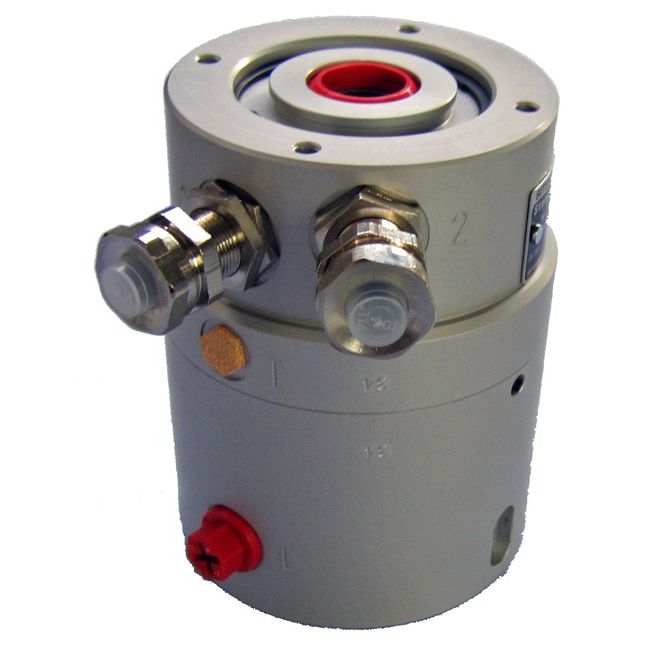

Hydraulic clamping / braking element for linear guides
ø 18 - 110 mm, 7 - 400 kN | KRG
SITEMA
Actuation
Safety Locks are held open by hydraulic (100 bar min) or pneumatic (3,5 bar min) mean and clamp when pressure drops.
Direction of load
In most applications Safey Locks are mounted on a baseplate, so that the load causes a compressive force to the mounting surface. But if the application requires an upward absorption of the load, a flange for attachment is required as well as a special design of the Safety Lock housing regarding the tensile load.
