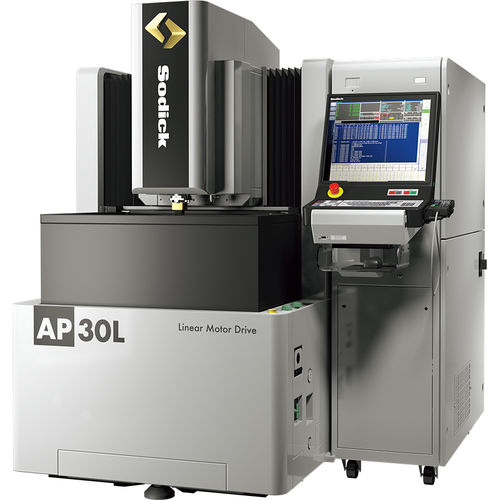

Sinker electrical discharge machine AP30L

high-accuracyhigh-speedcompact

EDM Machining System Using AI Technology. Dramatically Improves Reproducibility in the Ultra-fine Machining and Achieves High Speed and High-precision Machining. High-Speed and High-Response 3-Axis (XYZ) Linear Motor Drive High-performance linear motors and motion controllers that have been designed and manufactured by Sodick for over 20 years are adopted for the XYZ axes. To achieve top-class machining accuracy and efficiency, they offer extremely precise positioning accuracies and optimal high speed and high responsivity that are not possible with conventional ball screw drive methods. High Rigidity Construction and Precision Thermal Compensation System A newly developed CFRP compact symmetrical head is loaded to achieve low weight and high rigidity. In addition to the fully separate heat source and precise cooling mechanism, a newly developed precise thermal displacement compensation system makes it possible to perform high-precision machining. Also, the latest applications using AI (artificial intelligence) technologies are incorporated. New High-Speed "SP Power Supply" Boosts Machining Speed from Rough to Finish The new "SP power supply" NC unit developed and manufactured in-house has new discharge circuits and control that significantly improve machining speeds for all processes from rough machining to finishing. The new "Arc-less 4" EDM machining system offers stable high-precision machining to all types of materials.
