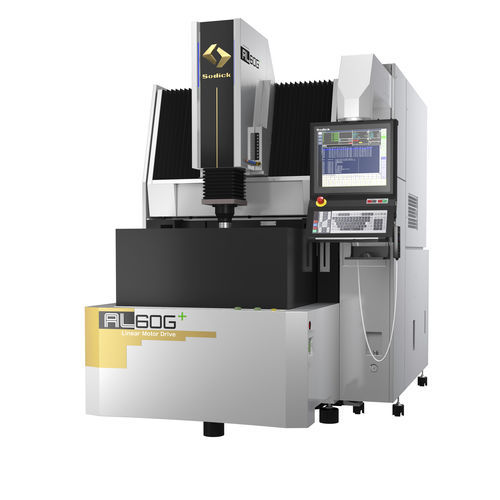

Die sinking electrical discharge machine AL series

high-speedprecision

Supports precision mold and parts machining with linear motor and latest electrical discharge technology Linear Motor DriveHighly Rigid Structure The "AL series" are equipped with the in-house developed and manufactured linear motors, and demonstrates a high-speed and high response machining. Together with a highly rigid machine structure, the adoption of precision correction function "TH COM" reduces the amount of thermal displacement by 50% compared to conventional models. Newly Developed "SP Power Supply" The communication and throughput speed has improved in the newly developed "SP Power Supply" for the die-sinker EDM, which increased the motor control response speed by more than double. The adoption of the new "TMM4" and "BSN4" circuit improves the quality and speed of the overall electrical discharge machining range. "Arc-less 4" Circuit The adoption of the latest electrical discharge control technology "Arc-less 4" circuit greatly improved the performance of die-sinker EDMs, such as further increased speed, reduces electrode wear, and realized various machining surface qualities from satin to mirror surfaces. It is also equipped with the AI machining condition adviser "LN Pro AI."
