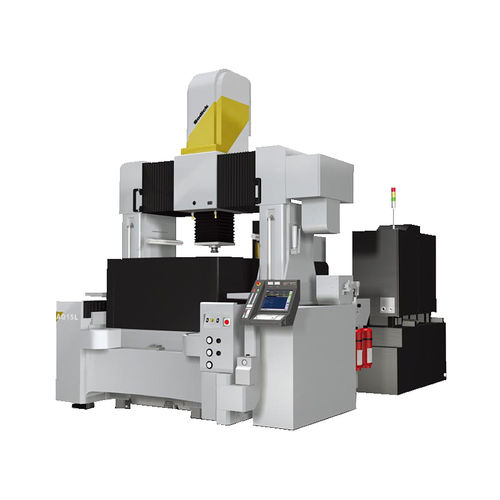

Die sinking electrical discharge machine AQ series

high-speedfor large partshigh-productivity

Large-Capacity Die-Sinker EDM with direct-drive system improves production efficiency of large dies for automotive parts and large flat panels Direct-drive Sodick's direct-drive system employs linear motors and linear scales, resulting in excellent positioning accuracy with maximum acceleration of 1.2G, made possible by high speed servo-jump. Work set-up is simple and expert-level skills are not required, providing a highly user-friendly operation environment. Unique machine structure The workpiece set-up table is completely separated from the drive system, thereby achieving mechanical construction that is completely unaffected by the shifting workpiece weight. In addition, the symmetrical gantry construction reduces mechanical displacement, and provides excellent machining stability. Increase production efficiency The extra service stroke allows the machining table workspace to be opened up giving greater access to the area for workpiece set-up. To further increase productivity, automatic tool changer (option) can facilitate continuous hours of automated machining, resulting in improved production efficiency and reliability.
