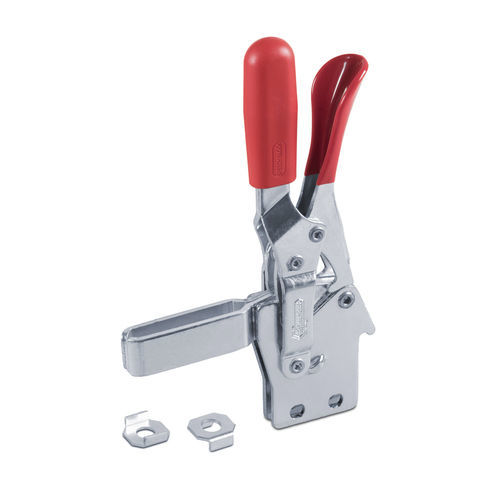

vertical toggle clamp / steel / with straight base / with anti-realease lever
steel, with straight base, with anti-realease lever
Max.: 0 daN
Min.: 0 daN
Toggle clamp Form BL
Toggle clamps - Vertical series
*** Also available in stainless steel material ***
Vertical series with folded base and with anti-realease lever. "Patent Pending"
Material: Galvanized steel or AISI 304 stainless steel
Riveted pivots: Galvanized steel or AISI 304 stainless steel
Supporting bushes: Hardened and ground steel (for sizes >=130)
Handles: Red polyurethane, resistant to oils, grease and other chemical agents.
Performance: Form BL and form BLX with open clamping lever and two flanged washers.
Spindles: To be ordered separately (see Accessories Series)
Features and applications: The main feature of this series is the special anti-release lever with the purpose of avoiding any accidental openings caused by vibrations; these tools are designed to prevent the operator's fingers from being crushed by the levers when opening. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses.
A special grease is placed between two contacting surfaces during assembly.
