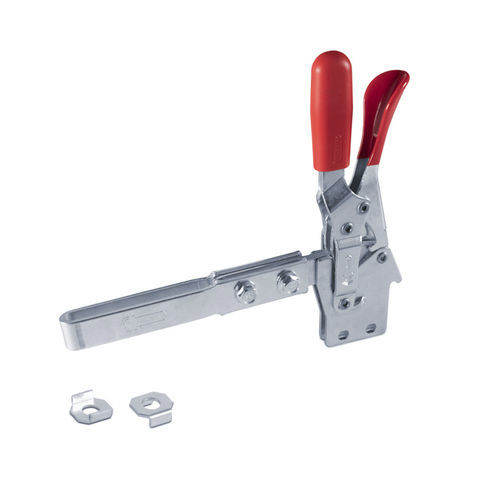

Vertical toggle clamp FLS
zinc-coated steellockingwith straight base

vertical toggle clamp
vertical toggle clamp
vertical toggle clamp
Add to favorites
Compare this product


Characteristics

Configuration
vertical
Other characteristics
zinc-coated steel, locking, with straight base, light-duty, with anti-realease lever, quick-lock
Clamping force

50 daN, 100 daN

Description

Toggle clamp Form FLS Toggle clamps - Vertical series New Vertical series with anti-release lever and extended clamping lever Material: Galvanized steel Riveted pivots: Galvanized steel Supporting bushes: Hardened and ground steel Handles: Red polyurethane resistant to oils, grease and other chemical agents. Performance: Form ELS with extended clamping lever and folded base. Form FLS with extended clamping lever and straight base. Spindles: To be ordered separately. Extensions: The models are supplied with AP6 and AP8 extension as per the drawing and with two flanged washers. Features and applications:The main features of this series are the special anti-release lever and the special extension of the locking arm to facilitate the specific use in control templates; these tools are designed to prevent the operator's fingers from being crushed by the levers when opening. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses. A special grease is placed between two contacting surfaces during assembly.
