Concentricity gage RPGR

manualfor workpieces

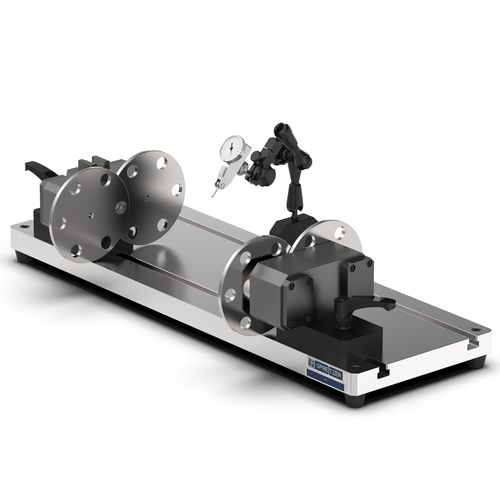

Concentricity gage RPGR with roller wheels is used in different applications for measuring the concentricity of round workpieces of diameter up to 240 mm. The two roller wheels can be moved easily on the base plate. The height of one of the roller wheels is adjustable. The version includes - hardened and ground base plate, two movable roller wheels that come with a clamp lever. It has a single support whose height can be adjusted to compensate the diameter difference of the workpiece up to 60 mm. For gauging instruments, it has an articulated arm with holder. One can read the concentricity directly. A concentricity gage with 2 roller wheels is delivered without articulated arm and without dial gauge. It is avaiable in additonal options like - articulated arm with holder for gauging instruments.
