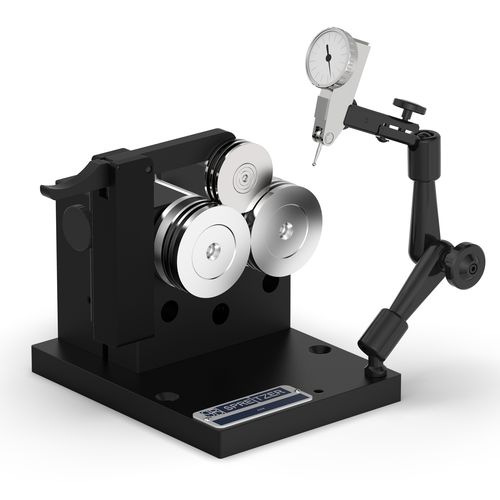

Concentricity gauge RPG AL

manualfor workpiecesrugged

RPG AL edition of Concentric gauge, mainly employed for independent and serial experimenting, with task analysis on external/internal/level faces and one-sided work-piece compatibility. The concentricity gauges of RPG AL edition are exclusively engineered for individual component analysis. The articulated arm with an integrated holder for dial gauges and electronic length probes is employed as an universal holder for gauging equipment, while an optional revolving gauge holder with guide column for serial experimenting is available. The unit has a rugged layout with pre-installed roller bearings for easy handling, fast analysis of one-off inspections by articulated arm. The delivery of the device comprises of an articulated arm with holder for gauging equipment, key and oil-stone, without a dial gauge. There are optional carbide rollers rotating gauge holder with 150 mm guide columns, with a maximum of 2 piece installation only.
