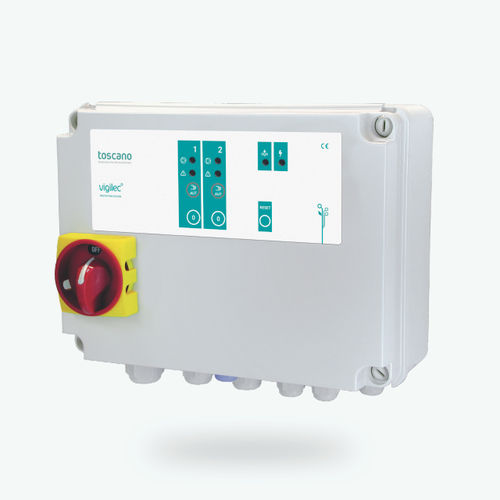

Control and protection for 2-pump lifting stations, up-to 12A, single-phase / three-phase, dual voltage 230/400VAC.
- Control of 2 pumps with alternation.
- Control by float switches.
- Sequential start, and replacement for pump failure or override.
- Protections: circuit breaker per pump, overload, motor overheating (klixon), phase loss, anti-blocking for each pump.
- General alarm output.
- Alarm output for high level (230VAC on request).
- 90db acoustic alarm.
Codes and references
- 10000190 V2B (0...12A)
Specifications
- Power: 230 and 400VAC ±20%, 50-60Hz (single/three-phase)
- Maximum pump current: 12A - AC3
- Alarm output contact: 5A – 250VAC
- Maximum cable section in terminals: 10mm² (power), 4mm² (control)
- Glands configuration: 1xM25 (power), 2xM20 (motor), 6xM16 (control)
- Dimensions (mm) / protection level: 230 x 300 x 120 / IP56
