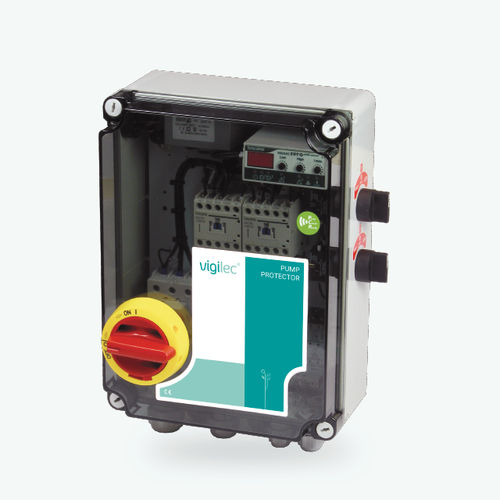

Digital modular control and protection panel for 2-pump lifting stations, up to 22A, dual voltage 230 or 400 VAC selectable.
- Plug-in control module TZ2BS: simple adjustment and comprehensive status display.
- Greater safety for the user and better immunity.
- More interior space and more comfort.
- Control of 2 pumps with alternation.
- Control by float switches, 4-20mA sensor or probes (with adaptor).
- Sequential start, and relay for pump failure or override.
- Protections: overload, phase loss, motor overheating (klixon), anti-blocking, sensor failure.
- Digital display (amps, level, operation hours, no. of starts, alarms, settings).
- General alarm output.
- 90db acoustic alarm.
- Optional 9V battery (up to 15h).
Codes and references
- 10002423 V2ZBS (1…12A)
- 10002516 V2ZBS-E (5…16A)
- 10002539 V2ZBS-F (5…22A)
- 10002447 V2ZBS-PROBES (probes adaptor)
- 10002426 V2ZBS-BATTERY (optional battery)
Specifications
- Power: 230 and 400VAC, ±20%, 50-60Hz (single/three-phase)
- Maximum pump current: 12A, 16A, 22A (depending on model) – AC3
- Alarm output contact: 5A – 250VAC
- Maximum cable section in terminals: 10mm² (power), 4mm² (control)
- Glands configuration: 1xM25 (power), 2xM20 (motor), 6xM16 (control)
- Dimensions (mm) / protection level: 300 x 220 x 120 / IP65
