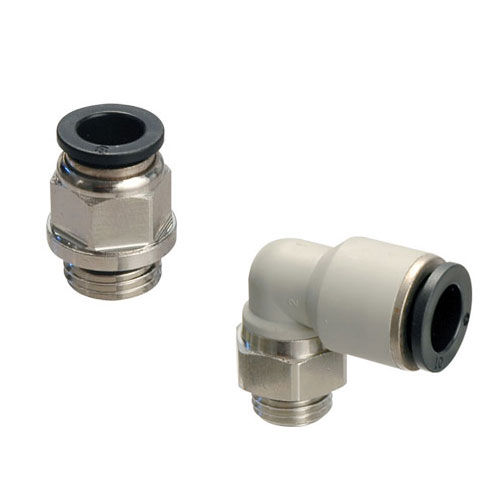

Nickel plated brass and plastic pneumatic push-in fitting
max. 15 bar | HA series Univer Group

TECHNICAL CHARACTERISTICS
Working pressure (bar) -0,99 ÷ +10 bar
Max Pressure (bar) 15 bar
Max. temperature range -20° ÷ 60°C (depending on the type of tube used)
Body technopolymer
Fixing element in nickel-plated brass with O-ring in NBR in parallel version or with Teflon coating in the taper version
Clamping collet stainless steel
Release ring technopolymer
Application fields pneumatic circuits
Recommended hoses Rilsan/Elastollan
