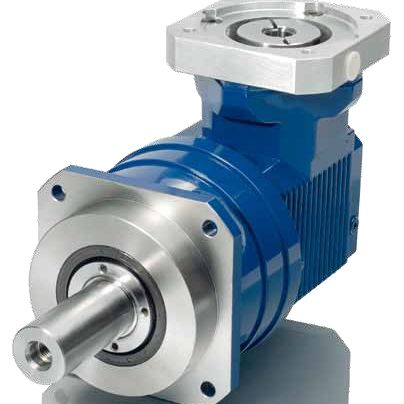

Planetary servo-gear reducer
max. 550 Nm, i= 12:1 - 100:1 | SKPR(N) series
VOGEL
Technical specifications on this page and in the tables on the
following pages are intended only for rough preselection.
Gear teeth: SK PR(N) 01 SKPR(N) 04
K lingelnberg spiral bevel toothing,
spur toothing
Direction
of rotation: I nput and output in the opposite direction
Efficiency: S ize 01 η ~0,93
S ize 02 η ~0,93
S ize 03 η ~0,92
S ize 04 η ~0,92
Life time: 20000 h
Permissible
gearbox
temperature
at housing: -10 °C +90 °C
Lubrication: Oil lubrication
Mounting
position: Any, please specify when ordering
Surface
protection: Primer coat RAL 9005 black
Protection
rating: I P 54
