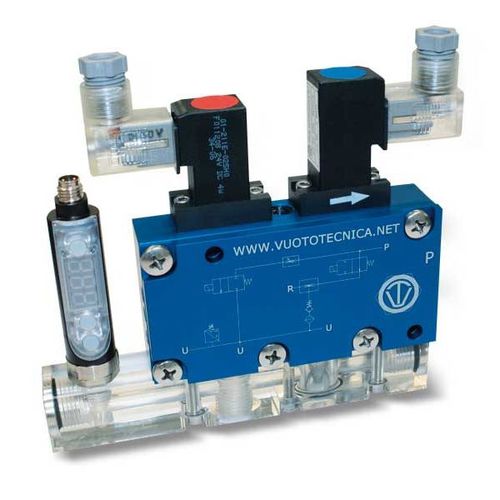

oil-free Venturi ejector / multi-stage / high-performance / for robots
GVMM, MI series VUOTOTECNICA

{{requestButtons}}

Characteristics

  • Lubrication:

    oil-free

  • Number of stages:

    multi-stage

  • Other characteristics:

    high-performance

  • Applications:

    for robots

  • Flow rate:

    Min.: 2.6 m³/h (91.82 ft³/h)

    Max.: 12.1 m³/h (427.31 ft³/h)

  • Ultimate vacuum:

    Min.: -85,000 Pa (-12.33 psi)

    Max.: -60,000 Pa (-8.7 psi)

Description

Modular multi-function vacuum generators are independent vacuum units that offer an entire vacuum control system. Having a reduced thickness and weight compared to their suction capacity,are designed to be assembled with screws to one or more intermediate modules MI. GVMM vacuum generators are composed of an anodised aluminium mono bloc with lid,inside which the silenced multiple ejectors are installed and the vacuum chamber with compressed air supply connection are contained.
The original internal connection system for the compressed air supply allows communication without external manifolds,thus allowing increase of independent vacuum units according to the requirements.You can therefore order a multi-function vacuum generator with the intermediate modules of desired capacities already assembled, or assemble one or more intermediate modules to the GVMM generator that has already been installed on the machine,without having to make particular modifications. Along with maintaining the vacuum level within preset safety values,this modulation allows saving a considerable amount of compressed air.
GVMM multi-function vacuum generators can be installed in any position and are suited for interconnecting vacuum gripping systems for handling sheet steel,glass etc. with excellent performance.
