Rooftop fan ZTE series

propellerexhaustventilation

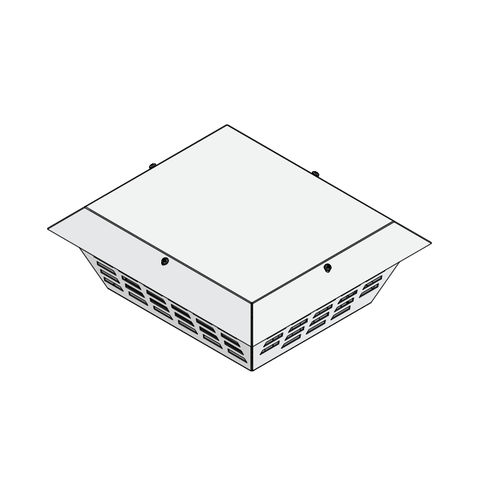

Roof ventilation system: Towers with no maintenance needs, for electric boards air exchange/extraction. Designed and produced in Italy; characterized by steel sheet housings and finned lower base; high-head centrifugal-fans generated flow; more than 40.000h reliability; terminal box connection; polyurethane sealing gaskets. All the articles are ready to be installed and provided with mounting screws. Available in RAL7032 and RAL7035 textured. Combine towers to ARIA-F150, ARIA-F250 and ARIA-F325 inlet filters at page 138-139, to create ventilation systems. Painting: Thermosetting powders Material: 1,5 mm thick carbon steel. 1,5 mm thick AISI 304 stainless-steel. Fine scotch brite medium satin, 240 grit. In AISI 316 stainless-steel on request Standard colours: RAL7035 textured – RAL7032 on request
