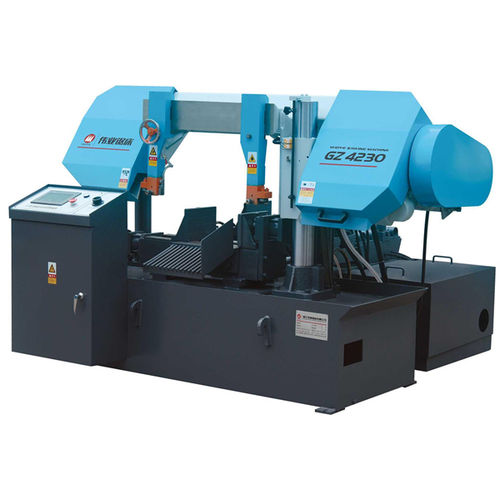

band saw / for pipes / with cooling system / with roller conveyor
GZ4230 Zhejiang Weiye Sawing Machine Co., Ltd



  • Technology:


  • Applications:

    for pipes

  • Other characteristics:

    with cooling system, with roller conveyor, variable-speed, with hydraulic vise, programmable, high-performance, CE, double-column, horizontal, PLC-controlled, fully automatic

  • Round piece diameter:

    Min.: 0 mm

    Max.: 300 mm


Capacity(mm) ●300 ■300×300
Blade Speed(m/min)
Blade Size(mm) 34×1.1
Main Motor 3KW
Hydraulic Motor 1.5KW
Coolant Motor 90W
Table Height 610mm
Workpiece Clamping Hydraulically
Blade Tensioning Manually
Floor Space(LxWxH)(mm) 2100×1935×1330
Adopts PLC unit, touch screen
hydrualic feeding and cutting cycle achieved
variable speed by the belt pulley and speed control valve
Auto-feeding, auto-positioning,auto-cutting
Error alarm system for maintenance
band check device

Gear reducer
Top vice
hydraulic blade tensioner
Chip auger
roller conveyor
