AC ammeters

... Full Scale CT Primary 1 to 999.0kA ( Programmable for Any Value ) CT Secondary 1 or 5 A ( Programmable ) Supply Voltage 230V AC ±20% (50/60 Hz) Size 96 x 96mm Mounting Type Panel Mount Certification CE, RoHS

... Accuracy ± 0.5% of Full Scale CT Primary 5 to 4000 A ( Programmable in Steps ) CT Secondary 5A ( fixed ) Supply Voltage 240V AC ±20% (50/60 Hz) Size 48 x 96mm Mounting Type Panel Mount Certification CE, RoHS & UL

... 1Ø-2 Wire Accuracy ± 0.5% of Full Scale CT Primary 5 to 4000 A ( Programmable in Steps ) CT Secondary 5A Supply Voltage 240V AC ±20% (50/60 Hz) Size 72 x 72mm Mounting Type Panel Mount Certification CE, RoHS & UL

No need for auxiliary power supply, only the CEC 96 type. DIN boxes with dimensions: 48, 72, 96 and 144. Measurement in true root mean square 100 mA . 100 A Exchangeable scales for EC48, EC72, EC96, EM 45, EC 72 FA, EC 96 FA The alarm ...

Does not need an auxiliary power supply DIN boxes with dimensions 48, 72, 96 and 144 Class 3 Measurement in AC of .../5 A (on demand.../ 1 A) Exchangeable scales for MC48, MC72, MC96, MM 45, EMC72, EMC96 Thermal ...

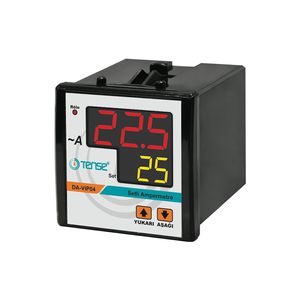

Digital set ammeters are designed to prevent the faults likely to arise from the current drawn by the loads. Descriptions: Current transformer value is fixed based on 100/5A. The device shows the current drawn by ...

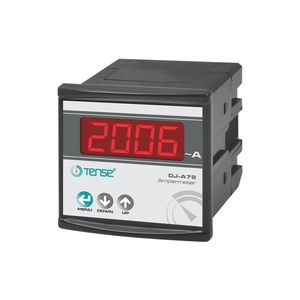

Digital ammeters are designed to monitor the AC current value drawn by the loads continuously.

Digital ammeters are designed to monitor the AC current value drawn by the loads continuously. Descriptions: Use the 100A current transformer provided with the device.

... DEIF is a DIN rail instrument that is used for DIN rail mounting with a measurement of 35 x 15 mm. The device is equipped for AC measurement. It has an accuracy of 1.5, a 90° pointer deflection, and an IP52 degree of ...

Three-phase AC ammeter S3I96 applies to three-phase current parameter measurement for power distribution system. The instrument enables transformation ratio programming function.

Moving-iron meters EA16, EA17, EA19, EA12 types are destined to measure a.c. voltage or a.c. current. They measure the true RMS value of a.c. voltage or a.c. current.

True RMS AC Ammeters with Built-in Current Transformers

Features • Measures AC current or voltage • Direct or CT connected ammeters • Direct or VT connected voltmeters • Moving iron movement • RMS measurement • Scaled down to 15% • Ammeters ...

The analogue AC ammeter, manufactured by Socomec, is a type of measurement device. Its modular boxes are for ROTEX or DIN mounting. Ammeter models come in 48/72/96/144 dimensions.

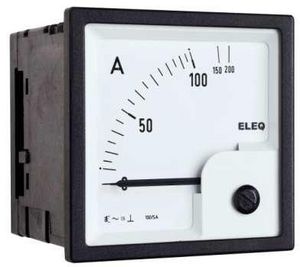

A.C. Ammeters Designed to measure A.C. current, these meters indicate true r.m.s. values and are substantially independent of system waveform. Scales are calibrated down to 20%, ...

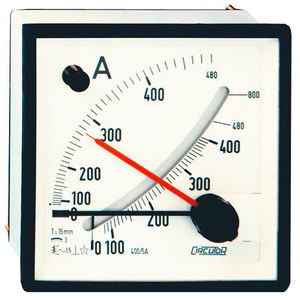

These instruments consist of a bimetallic maximum demand indicator combined with a moving iron system. The bimetallic meter movement with its drag indicator shows the maximum value, the moving iron meter the present value. They are working ...

GF2011 Portable High Voltage Ammeter specially designed and manufactured for High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC ...

... instruments ANALOG Dimensions (mm): 24x96, 48x48, 48x96, 72x72, 96x96, 144x144, 70x60, 90x80, 127x109. To be used as: ammeters, voltmeters, power factor meters, frequencimeters, wattmeters, varmeters, countermeters, ...

E-line meters with a moving iron are intended for measurement of AC currents or voltages with frequencies from 15 Hz to 100 Hz. They measure rms values independently on the signal form of current or voltage. The accuracy ...

Digital Ammeters The M4Y/M4W/M5W/M4M series digital ammeters can measure electric current in amperes and display the values in numeric form. All models feature a 7-segment LED display for clear indication ...
