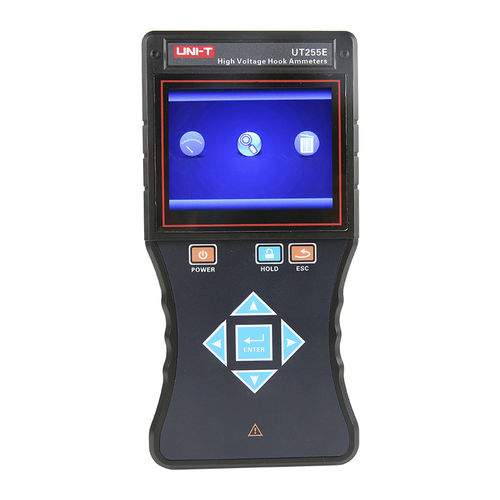

AC ammeter UT255E

digitalbuilt-infor high-voltage applications

UT255E is designed with a hook detector, wireless receiver, and telescopic insulating rod. With telescopic insulating rods connected, it can test leakage current, current, frequency, load, and others for bare conductors, bus bars below 35kV, or cables with safety insulation sheaths below 110kV. The hook detector is equipped with the built-in double-layer flexible coil, featuring lightweight, high precision, wide range, and good linearity, it can be hung onto the line for testing, especially suitable for detecting transformer load and inspecting leakage current of multi-core thick cables underground or outdoors. Features of UT255E High Voltage Hook Ammeter ● 0～20000A AC current measurement ● Measurable busbar: Ф168mmx245mm ● Measurable wire & cable: Max. Ф168mm ● Wireless transmission distance: 150 meters ● Frequency: 45Hz～75Hz ● Data storage: 9999 set ● 3.5 inch true color LCD ● Effort-saving hook detector ● Built-in double-layer flexible coil ● Sampling rate: 2 times/sec Technical Specifications AC current (Auto range) - 0～99.9A;10mA ;±2%±5dgt 100A～6000A; 10mA; ±3%±5dgt 6.00kA～20.0kA; 10mA; ±4%±5dgt Frequency - 45Hz～75Hz; 0.1Hz; ±1Hz (50/60Hz, auto) Accuracy guaranteed temperature and humidity - 23℃±5℃, below 80%RH Features Function - 1, High/low voltage leakage current, Current and frequency test; 2, Grounding current test of the iron core, transformer load; 3, Leakage current test of multicore cable. Testing method - Hang the hook-type CT onto the line for testing Transmission mode - 433MHz wireless transmission Phase detecting distance - About 150m (Straight-line distance) On-line voltage - Bare conductor: <35kV Sheath-insulated cable: <110kV
