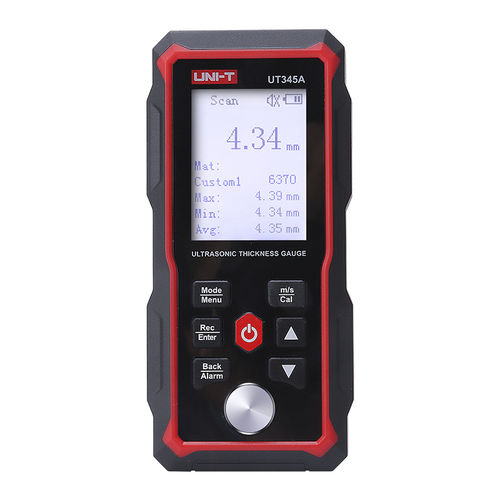

Metal thickness gauge UT345A

plateportableultrasonic

UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields. Features of UT345A Ultrasonic Thickness Gauge ● 3.7V 2000mAh lithium battery ● Auto calibration ● 300 groups of data storage ● High-sensitive probe ● Buzzer alarm ● Multiple materials selection ● Main functions: single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration Specifications Display - 2.4″ LCD Measurement range - 1.00~300.00mm Sound velocity range - (1000～9999) m/s Unit - mm/in Accuracy - H<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm Lower limit of pipe measurement - Φ20×3mm (steel) Data storage - 300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group Main functions - Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibration Charging specification - DC 5V 1A, Type-C interface Operating time (full battery) - About 16h Operating temperature and humidity - 0℃~40℃ 10%RH~80%RH Storage temperature and humidity - -10℃~50℃ 10%RH~70%RH General Characteristics Battery - Built-in lithium battery (3.7V 2000mAh) Product color - Red and grey Product net weight - 175g Product size - 140×66×28.5mm Standard accessories - Type-C charging cable, Probe
