Displacement sensors for automation

Measuring range: 10 mm - 500 mm
Linearity: 0.01 % - 0.02 %
Measuring rate: 0.3 kHz - 8 kHz

... powerful and fast, the optoNCDT 1420 laser sensors have been raised to a new level for advanced automation applications. The measuring rates have been doubled to up to 8 kHz, making them the fastest ...

Measuring range: 2 mm - 500 mm
Measuring rate: 250 Hz - 10,000 Hz
Supply voltage: 11 V - 30 V

The innovative laser sensor optoNCDT 1900 offers a unique combination of high speed, compact design and accuracy. The sensor is used for dynamic displacement, distance and position measurements. ...

Measuring range: 10, 25, 50 mm
Linearity: 0.1 %
Measuring rate: 0.3 kHz - 4 kHz

... the structure itself needs to be measured. For fine details and surface structures, the optoNCDT sensors with a point-shaped laser and the Blue Laser sensors are the preferred choice.

Measuring range: 0 mm - 82.5 mm
Linearity: 0 % - 1 %

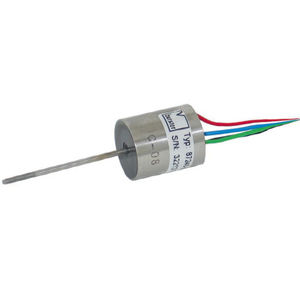

Displacement and all mechanical values which can be converted to displacements (e.g. compressive and tensile force, strain, torque and vibration) may be measured by this DC/DC displacement ...

Measuring range: 0 mm - 10 mm

With a housing diameter of only 4 mm, the LVISM is one of the smallest LVDT sensors of its kind. Furthermore, with a length of 7 cm it is not even twice as long as a match. Measurement range - 2 mm, 5 mm, 10 mm Linearity ...

Measuring range: 10 mm - 500 mm
Linearity: 0.1 % - 0.3 %
Measuring rate: 5 kHz

Laser distance sensors of the LAS2-TM series impress with their high precision and their miniature housing. The optical sensors measure precisely at distances of up to 500 mm and achieve a linearity ...

Measuring range: 20 cm - 800 cm
Ambient temperature: 0 °C - 45 °C

Output signal: AB quadrature signal, compilant with EIA-422 Maximum resolution: 10 µm Maximum response speed: 300 m/min (varies with the read head and settings) Excellent resistance to workshop conditions (IP65) Resistant to oil, dirt, ...

Measuring range: 0 mm - 10,000 mm
Linearity: 0 % - 0.2 %

... potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value ...

Measuring range: 11 mm
Power consumption: 0.2 W

8FLP10D Linear Conductive Plastic POT. Linear Potentiometers/Linear Sensors Conductive Plastic With front and rear exteded shaft Low-cost Item　 - General Specifications Standard Resistance Values：1kΩ,2kΩ,5kΩ,10kΩ Total ...

Measuring range: 4 mm - 4 mm
Linearity: 0 % - 0.1 %
Measuring rate: 150 Hz - 150 Hz

... displacment transducers of ours simplifies the planing and sensor integration. Documents, drawings and IODD-files are available on our webpage. The sensor has to be connected with a M8 A coded sensor ...

Measuring range: 10 mm - 10 mm
Linearity: 0 % - 0.1 %
Measuring rate: 150 Hz - 150 Hz

... the transducer and the electronics build a smart sensor the in-system errors are minimised. All IO-Link transducers (also short stroke series) share one device profile. This allows to subtitute sensors ...

Measuring range: 0.4 mm - 1 mm
Linearity: 0.5 % - 1 %

Miniature Transducer designed to fit into very tight spaces for high precision measurement with a repeatability of 0.050 microns and a linearity error of max. 1% of the measuring range.

Measuring range: 0 mm - 50 mm
Linearity: 0.08 %
Measuring rate: 14 Hz

• Sensor connection: 3-pin M8x1 plug connector Displacement sensor with resistance and collector path of conductive-plastic for direct displacement and tolerance measurements ...

Measuring range: 0 mm - 25 mm
Linearity: 0.08 %
Ambient temperature: -30 °C - 85 °C

• Sensor connection: 3-pin M8x1 plug connector Displacement sensor with resistance and collector path of conductive-plastic for direct displacement and tolerance measurements ...
