Stroke : 30, 50 mm
Force: 210, 110 N
Speed: 50, 100 mm/s
... Miniature Size High positioning repeatability Stable under High-speed Description 1. The drawings provided in this Catalog are for the default standard model. If you require other models with different motor directions, outlet directions, ...
RobustMotion—Foshan Augmented Intelligence Technol
... -performance linear actuator designed for various applications in industrial automation and electromechanics. It offers reliable and efficient motion control solutions, ensuring precision and durability. - High-performance ...
COMMEX srl
Stroke : 0 mm - 950 mm
Force: 10, 20, 30, 40 kN
Speed: 130 mm/min
... Operations: An dc electric motor drives via a gear a spindle. A stainless steel piston rod runs the linear move. To avoid a mechanical collision at the end positions of the actuator, there are end limit ...
Stroke : 55 mm
Force: 500 N
Speed: 100, 292 mm/s
... short-stroke actuator is designed for precise positioning with a max. force of up to 1,500 N. The integrated ball screw extends the motor’s service life – even when run at high speeds and loads. With a nominal voltage of 48 V, this compact ...
Nanotec Electronic GmbH & Co. KG
Stroke : 20 mm
Force: 25 N
... 0.15 kg 50000 Cycles Without connector AMP 928161-2 connector IP54 Actuator housing % 30 GF reinforced polyamide plastic case Suitable for door latches, trunk lids, and lift gates Durable construction for long ...
Stroke : 50 mm - 1,000 mm
Force: 1 N - 16,000 N
Speed: 5 mm/s - 138 mm/s
... HTW760 industrial linear actuator is a very powerful actuator designed for various app such as agricultural machinery, construction machinery, and industrial machinery. Difficult applications Require ...
GeMinG Driven
Stroke : 300, 500 mm
Force: 500 N
Rod length: 300 mm - 750 mm
... VdS-certified For use in SHE- and SPS-systems Technical data Electrical properties Rated voltage 24 V DC (-20 % /+30 %) Permissible ripple voltage 2 Vss Nominal current 0.9 A Cut-off integrated, electronic load ...
Kingspan STG GmbH
... Material: Housing: Aluminium anodised black, Connecting rod out of CF 53 Mechanical guidance: The spindle sleeve is anti-twist protected in a ball guide bush Drive: For the drive stepper motors and servo motors are available; The attachment of the motors ...
Föhrenbach GmbH, Positionier-Systeme
Stroke : 100 mm
Force: 1,000 N
Speed: 30 mm/s
... MINI 0 Standard version: · Alternating current · Basic stroke 100 mm · Single-stage · A-fastening The Mini 0 lifting spindle drive with integrated limit cut-off offers a lifting speed of up to 30 mm/s, depending ...
GROB GmbH Antriebstechnik
Stroke : 14 in
Force: 4, 45 N
Torque: 9.15, 7.75 Nm
... Description NEMA 11 Precision Linear Actuator, Double Stack Motor, Travel Per Step, 0.000125" ...
Helix Linear Technologies
Force: 10 kN
... Power-Packer’s self-contained MK5 hydraulic actuator is a reliable, cost-effective solution for a wide range of patient handling and lifting devices. Its smart, intuitive design combines a pump, cylinder, valves and reservoir into one ...
Power-Packer
Stroke : 0.5 in - 4 in
Force: 46.84 N
... Bore: .366″ (9.3 mm) Piston Area: .105 in² (67.88 mm²) Strokes: 0.5, 1, 1.5, 2.0, 3.0, 4.0 ...
Airpot
Stroke : 30 mm - 300 mm
Force: 500 N - 3,000 N
Motor power: 30 W - 60 W
... A group of professional and senior R&D engineers, process technology and quality control talents are equipped with high-precision precision machining equipment such as OKUMA, MAZAK, BROTHER, HASS, etc., and the German ZEISS three-coordinate, JENOPTIK ...
Hangzhou Hengye Motor Manufacturing Co.
Force: 31,137, 17,792 N
... requirements of industries. We provide heavy duty linear actuators 12v to support industrial applications. Specialized Features and Benefits Industrial Heavy Duty Linear Actuator ...
Venture
Stroke : 67 mm - 1,380 mm
Speed: 0.27 m/s - 1.12 m/s

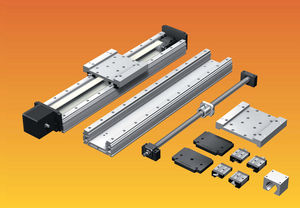

... Reduced price, only valid for stock items. The linear actuator GKA4270-600-12N-P5 is a compact positioning module with a rail guide and a precision ball screw. The U-profile made of Aluminium (steel in the GKS series) ...
GMT Europe GmbH
... available. The actuator is self-locking and can be unlocked easily in case of electrical blackout by means of the supplied unlocking key. Moreover, the 24V version can be operated even in absence of electricity for ...
QUIKO ITALY
Stroke : 280 mm - 330 mm
Force: 4.5 kN - 8 kN
... The Hydraulic linear Actuator is a reliable self-contained hydraulic actuator for use in stretchers and trolleys. The pump cylinder. valves and reservoir recombined into one compact. maintanance free ...
polimot lineer har.sis.mekatronik san.tic.ltd.şti
... Hydraulic double-acting balanced rotary actuator 90° quarter-turn with helicon spline. An actuator that deliver high torque without the need for large size, and are suitable for the most demanding of conditions, from ...
Damcos
... simple installation. The materials used to manufactured the variouscomponents pretect them against water, dust and rust. The electric motors are protected by heat probes. The mechanical gears, with components lubricated using a special ...
RIB
Stroke : 10 mm - 500 mm
Force: 23 N - 295 N
... COVERS Anodized aluminium TUBE AISI 304 Stainless steel PISTON Brass SEALS Ø8-10-12 Polyurethane – NBR Ø16-20-25 Polyurethane GUIDE BUSH Sintered bronze PISTON ROD AISI 303 Stainless steel MAX ...
Cy.Pag. S.p.A.
... solenoid tube (also known as pressure tube, guide tube or armature) is extremely easy to repair thanks to the mechanical and electrical components being separate. Its key component is the pressure-resistant solenoid tube. It serves ...
Force: 11,000 N
Speed: 0 m/s - 0.09 m/s
... Acme screw linear actuator with 90° design (worm wheel geared motor). Electric or magnetic external limit switches Pull-push load up to 11.000 N Linear speed up to 93 mm/s AC motors ...
Linearmech Srl
Stroke : 25.4 mm - 300 mm
Force: 150 N - 1,000 N
Speed: 5.5, 7.5, 12.3, 23.5, 36.5 mm/s
... Linear actuators for direct current with dynamic force up to 1000N. These actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer ...
Transmotec Sweden AB
Stroke : 600, 300 mm
Force: 10 N - 100 N
... Linear actuators (LA) are electromechanical drive elements that transform the circular movement of the rotor shaft into a linear movement. This involves active positioning elements that allow many different ...
MICROSTEP GmbH
Stroke : 50 mm - 300 mm
Force: 150 N - 2,500 N
Speed: 5.5 mm/s - 43.9 mm/s
... Description LD3 waterproof linear actuator features its compact design, which is suitable for various applications that require limited installation space, such as window or gate opener, adjustable seat tilting, and ...
Moteck Electric Corp
Force: 30 kN - 60 kN
... ball screw drive Type: MSP - Planetary roller screw drive Basic equipment (all models): Stainless Steel piston rod and trunnion pivot, piston rod with anti-rotation guide and spherical rod-end or galvanised clevis. Standard ...
ADE-WERK
Stroke : 10 mm - 50 mm
... applications where a compact motorized actuator is required. The integral dc motor gearhead and precision leadscrew result in an actuator capable of submicrometer motion without sacrificing load capacity. All actuators ...
... DA-H Working pressure 3,650 PSI Torque up to 2,200,000 LBS Angle of rotation up to 360° Special angle of rotation up to 1500° Preferred applications: Industry (construction machinery) DA-H-AL Working pressure 3,000 PSI Torque ...
Stroke : 100 mm - 1,500 mm
Force: 570 N - 700 N
... elements of the Medan electric spindle actuator ELS-S are the carriage, the spindle and the tube. Customers can specify electric motors made by many different world-wide companies. For standard applications, ...
MEDAN
... presented in this catalogue is based on years of trouble-free use of rotary actuators. Rotary lift combinations with linear cylinders optionally in font of or behind the rotary actuator ...
Torque: 3 Nm
Speed: 1.5 m/s

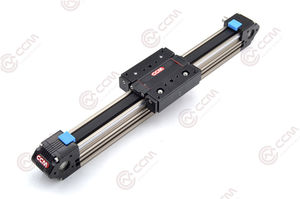

... Regardless of your application, when considering the options among pre-assembled linear systems, start with the four primary application parameters—stroke, load, speed, and precision. Once the magnitude and importance of these criteria ...
CCM Automation Technology Co.,Ltd
Pressure: 1 bar - 10 bar
Torque: 1,800, 5,000 Nm
... rack and pinion actuators are specifically designed to operate quarter-turn valves, such as ball, butterfly and plug valves in highly corrosive environments such as offshore platforms or vessels. The linking surfaces of the actuators ...
Quifer Actuators S.L.
Stroke : 0.5 in - 8 in
Speed: 0.24 in/s - 1.85 in/s
Operating Temperature: -10 °C - 50 °C
... As our smallest linear actuators, the PA-MC1 micro linear actuators have a compact design that is ideal for projects with limited spacing. The ingress protection rating of IP65 offers ...
Progressive Automations Inc
Stroke : 50 mm - 300 mm
Force: 1,000 N
Speed: 6 m/s - 45 m/s
SNT
... screw nut or a trapezoidal nut. It is installed on a prismatic linear bearing rail that is installed within an extruded aluminum housing. The rodless cylinder transforms movement into a linear motion. ...
Stroke : 50 mm - 750 mm
Force: 120 N - 2,200 N
Speed: 3 mm/s - 33 mm/s
... and versatile electric in-line actuator handles all sorts of minor lifting tasks. Besides the elegant design, it's also highly efficient. Our con35 is ideal where size is limited by design or functionality. The electric ...
Concens A/S
Stroke : 12, 13 mm
... Ton Capacity - 20/10 Piston area (cm2) - 28,3/15,2 Oil volume per stroke (cm3) - 54 Height (mm) A Min - 51 Height (mm) B Max. - 76 C (mm) - 49,3 D (mm) - 78 E Ø (mm) - 60/44 F Ø (mm) - 51/38 G Ø (mm) - 15 L (mm) - 39 M (mm) ...
... A tin-can linear actuator, the Nippon Pulse linear stepper motor PFL, PFCL series (LINEARSTEP®) is designed to provide a simple linear actuator at a fraction of the ...
Nippon Pulse
Stroke : 300 mm
Force: 8,000 N - 10,000 N
... Linear actuators S 95/SH 95, S 80/SH 80 Our powerful hamatic compact linear actuators are suited as base motors for dental chairs or for adjusting the height of dental X-ray machines. ...
HANNING
6 expert tips
Prioritize total cost of ownership by evaluating energy consumption and maintenance frequency against the initial purchase price of systems.
Specify integrated sensors for real-time feedback to enable predictive maintenance and reduce unplanned downtime in critical production workflows.
Always verify the technical certification to ensure compliance with local building safety standards and long-term durability.
Conduct thorough thermal modeling to ensure the selected drive technology handles the heat dissipation requirements of specific duty cycles.
Evaluate the compatibility of mounting accessories to ensure mechanical alignment and prevent side-loading forces from damaging the internal drive.
Force: 28 N - 3,000 N
Speed: 1.4 mm/s - 48 mm/s
Operating Temperature: -10 °C - 60 °C
... DAM line with spindle pitch 3mm Direct current electric actuator with trapezoidal spindle pitch 3mm. Motor is parallel to the axle. Actuator body in zamac. Transmission with spur gear ...
DI-MA di Pellegrino Diego
