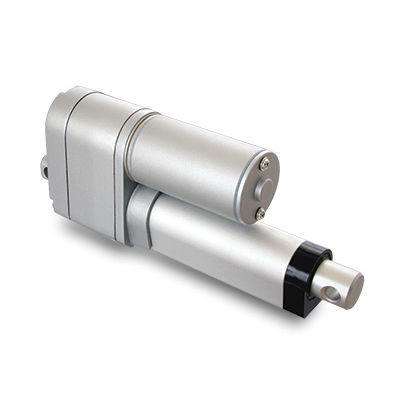

Electric actuator DLA serieslinearspur gearaluminum
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- spur gear
- Material
- aluminum
- Motor
- DC
- Voltage
- 24-volt, 12 V
- Norms
- ISO
- Protection class
- IP65, EMC
- Other characteristics
- custom
- Stroke
Max.: 300 mm
(11.811 in)Min.: 25.4 mm
(1 in)- Force
Max.: 1,000 N
Min.: 150 N
- Speed
5.5 mm/s, 7.5 mm/s, 12.3 mm/s, 23.5 mm/s, 36.5 mm/s
- Operating Temperature
Max.: 65 °C
(149 °F)Min.: -26 °C
(-15 °F)
Description
Linear actuators for direct current with dynamic force up to 1000N. These actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for assembly are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling.
