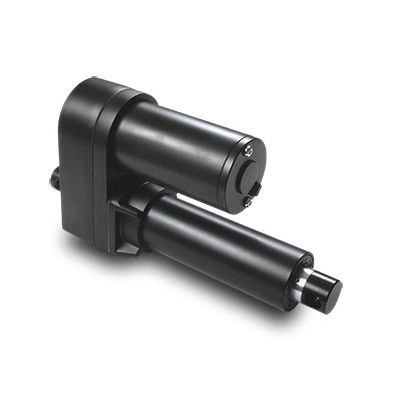

linear actuator / electric / trapezoidal screw / aluminum
DMA series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
linear actuator linear actuator - DMA series
{{requestButtons}}

Characteristics

  • Movement:

    linear

  • Type:

    electric

  • Technology:

    trapezoidal screw

  • Other characteristics:

    aluminum

  • Stroke :

    Max.: 610 mm (24.016 in)

    Min.: 102 mm (4.016 in)

  • Force:

    4,500 N

  • Speed:

    Max.: 0.028 m/s (0.091863517 ft/s)

    Min.: 0.005 m/s (0.016404199 ft/s)

Description

Voltage 12 or 24 VDC
Dynamic force 3500 N
Static force 4500 N
Speed 5-28 mm/s
Stroke 102-610 mm
Protection class IP65
Materials powder coated steel and aluminum alloy
Operating temperature -26°C~+65°C
Feedback option potentiometer
Customizations are offered
