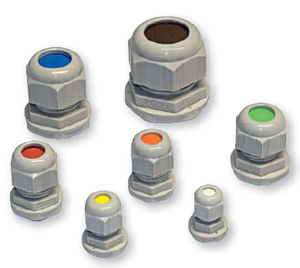

Plastic cable glands
Operating temperature: -20 °C - 65 °C
... quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands ...
OBO Bettermann
Cable diameter: 0.65 in - 1.49 in
Thread diameter: 12.5 mm - 28.3 mm
Clamping range: 2 mm - 18 mm
Strain relief gland offering maximum protection against conductor fatigue caused by flexing cables. Spiral top Polyamide (PA6) strain relief with CR bushing. IP 68 - 5 Bar 1 to 4 pieces: $4.19/pc 5 ...
SAB Bröckskes
Cable diameter: 3 mm - 44 mm
Thread diameter: 12 mm - 64 mm
Operating temperature: -40 °C - 100 °C
Material: Brass with nickel plated Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2 Sealing element: NBR Thread Type: PG according to DIN40430 Test Standard: EN50262/EN62444 Protection Class: IP68 Working Temperature: ...
YUEQING JIXIANG CONNECTOR CO., LTD
Cable diameter: 4 mm - 18 mm
Thread diameter: 19 mm - 22 mm
Operating temperature: -40 °C - 100 °C
Material: PA(Nylon), UL94 Hermetic seal: NBR Working temperature: -40℃ to +100℃ Color: Grey, Black or Custom color Mode code: 3/8" NPT 4-8mm 3/8" NPT 2-6mm 1/2" NPT 6-12mm 1/2" NPT 5-9mm 1/2" ...
Utility Electrical Co., Ltd.
Cable diameter: 2 mm - 44 mm
Thread diameter: 7 mm - 48 mm
Operating temperature: 40 °C - 100 °C
Material: PA (NYLON), UL 94 Hermetic seal: NBR, EPDM Working temperature: -40*0 to 100*0 in static state Instantaneous heat resistance up to 120*0 -20*0 to 80*0 in dynamic state Instantaneous heat resistance up to 100*0 Degree of ...
Hont Electrical Co., Ltd.
Cable diameter: 24 mm - 30 mm
Operating temperature: -20 °C - 100 °C
Perfect Fix cable gland, metric thread without ring • Material Body: PA6 (Polyamide) External sealing ring: CR/NBR (Nitrile chloroprene) Internal sealing ring: TPE (Thermoplastic elastomer) Gasket: ...
Berardi Bullonerie srl
Cable diameter: 4 mm - 44 mm
Operating temperature: -60 °C - 70 °C
NAVP series cable glands in polyamide with ISO thread are used in hazardous areas to allow direct insertions of unrmoured cables into 'Ex e' (NAVP..IXE) or 'Ex i' (NAP..IXI) equipment ...
CORTEM
... range of Cable Glands and Accessories are widely used for installation in explosive atmospheres. Types of Cable Glands •A2 Type Cable Glands •CW ...
Cable diameter: 3.5 mm - 54 mm
Thread diameter: 12.1 mm - 71.4 mm
... Special designation, good strengthsile and none damage to electrical machine. 2.not need to dismetgrate the fix terminal, cable can be inserted throug directly then tighten easy and save time. · Application:used ...
Thread diameter: 15 mm - 65 mm
This part is a 100% waterproof cable gland (IP68 - 5 bar). Its design gives the possibility to fit several cable diameters with secure protection and fastening. It can be supplied with ...
ISC PLASTIC PARTS
Cable diameter: 3 mm - 12 mm
Thread diameter: 25 mm - 63 mm
Operating temperature: -30 °C - 80 °C
wege® - the flexible cable gland system in brass, stainless steel and plastic. material: PA, colour: light grey (RAL 7035), sealing insert: TPE, washer: steel zinc plated, protection ...
Geissel
Cable diameter: 3.5 mm - 32 mm
Operating temperature: -25 °C - 60 °C
Cable gland with TPV soft rubber seal and a protection rating of IP54 according to EN 60529. Available in metric thread from M12 to M40 and PG7 to PG36 thread for various cable diameters. ...
Pemsa Cable Management, S.A.
Cable diameter: 2 mm - 5 mm
Thread diameter: 12 mm
Operating temperature: -40 °C - 100 °C
Cable Diameter Hummel® Standard Cable Gland HSK-K Finish Self Colour Old Web Reference 1.209.1201.51 Material Polyamide V0 to UL 94 - Black RAL 9005 Availability Preferred
Cable diameter: 3 mm - 44 mm
Operating temperature: -30 °C - 100 °C
Material - Polyamide Colour - RAL 7001 (Gray) - RAL 7035 (L.Gray) - RAL 9005 (Black) Protection class - IP 68 5 bar Permanent operational temp. - -30 C to + 100 C degrees Short term max. operational temp. - +150 C degrees Seal ...
Altinkaya Enclosures
Operating temperature: -20 °C - 100 °C
NYLON CABLE GLANDS PG THREAD Made of self-extinguishing polyamide PA66, class V2 (UL94) - Neoprene gasket - Protection class IP68 - With antiscrewing device. Temperature range: • from -20°C to +90°C ...
Cable diameter: 3.6 mm - 50 mm
Thread diameter: 12.5 mm - 71 mm
... designation, good tensile strength, no damage to electrical machine. 2.No need to dismetgrate the fix terminal, cable can be inserted through directly then tighten easy time saving easy operation Appilication: ...
Thread diameter: 12 mm - 63 mm
Operating temperature: -40 °C - 85 °C
material: polyamide 6.6, (gland body: PA 6.6, halogen free, seal: TPR, halogen free, washer: PVC), colour: light- grey or black, temperature range: 40°C to + 85°C, vibration protection: integrated anti- twist protection ...
Cable diameter: 2 in
The Ezi-Dock™ 2 inch BSP Square Gland is a high quality Single Use Filling Spout. Can also be membraned to be used as a low-cost Discharge Gland/Spout. Manufactured From Food Contact Approved Materials.
Cable diameter: 4 mm - 20 mm
Thread diameter: 9, 8, 11, 10 mm
Operating temperature: -40 °C - 100 °C
Bend Cable Gland Product Details: Material:Nylon PA(UL File:E240925) Temperature range:-40°C to 100°C;(short term to 120°) Supply Color: Grey Ral7035 /Black Ral9005 Please inquire if the other color requested
ZHEJIANG DERXIN CONNECTOR CO.,LTD
Cable diameter: 3 mm - 25 mm
Thread diameter: 12 mm - 29 mm
The cable entry can be with single hole, double hole or spiral
Cord grip for use with CTC junction boxes, for cable diameters .118" - .256" (3.0 - 6.50 mm)
Cable diameter: 3 mm - 50 mm
Thread diameter: 12.5 mm - 70.2 mm
Operating temperature: 140 °C
The PG is a cable gland manufactured by RCCN. It is designed for fixing wires of machines for electrical applications, and mechanical control boards/boxes. The device is constructed with Polyamide 6.6, ...
Shanghai Richeng Electronics
Cable diameter: 17 mm - 68 mm
Thread diameter: 8 mm - 49.8 mm
Operating temperature: -40 °C - 105 °C
TNC Type Material : High Quality Polyamide6 Protective : IP 67(EN 60529) Temperature Range : -40℃ + 105℃ Short Term : up to +150℃ Self-Extinguishing : UL94-HB / Free of Halogen Phosphorous and cadmium Color : Black & Gray Application ...
Cable diameter: 3 mm - 44 mm
Operating temperature: -40 °C - 120 °C
Nylone Cable Gland Material: Polyamide, sealing: modified rubber Color: Greywhite (RAL 7035) Black (RAL 9005) Protection degree: Using suitable O-sealing within the clamping range it protection degree ...
Cable diameter: 3 mm - 52 mm
Thread diameter: 12 mm - 63 mm
Operating temperature: -40 °C - 100 °C
All the membrane materials of the plastic waterproof and breathable valve products are imported from the United States. It has the characteristics of stable performance, simple installation, long use time and high ...
YUEQING HONGXIANG CONNECTOR MANUFACTRER CO., LTD
