Intel® Pentium® N4200PC AIOT-AIVD

Intel® Movidius™ Myriad™ XUSB 3.0RJ45

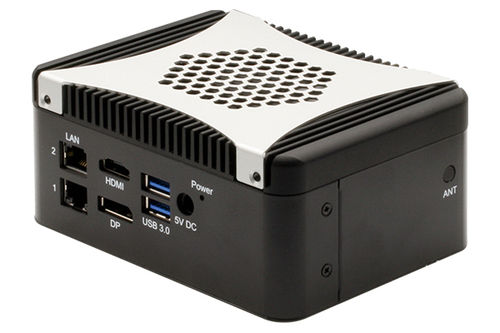

AI IoT Video Analysis Gateway Overview The compact AIOT-AIVD from AAEON is our latest Edge Computing system, built for embedded AI applications. Built around our UP Squared board, it features the Intel® Pentium™ N4200 processor paired with 8GB RAM and 64GB eMMC, perfect for edge computing. The AIOT-AIVD powers AI with our innovative AI Core X with Intel® Movidius™ Myriad™ X VPU, with processing speeds of up to 105 fps (80 typical) or 1 TOPS as a dedicated neural network. The AIOT-AIVD is design to take Edge Computing where your project needs it. The AIOT-AIVD is designed with an improved active thermal solution, capable of operating in temperatures up to 60°C. Compatible with Intel® Distribution of OpenVINO toolkit, the compact and versatile AIOT-AIVD can power AI applications from Unmanned Stores to Smart Home Safety and Security. Features - Intel® Apollo Lake Pentium® N4200 Processor - Onboard 8G memory, 64G eMMC storage - Intel® Myriad™ X module - LAN/USB/HDMI/DP - Support 2nd storage HDD up to 1TB - Optional Wi-Fi / Bluetooth
