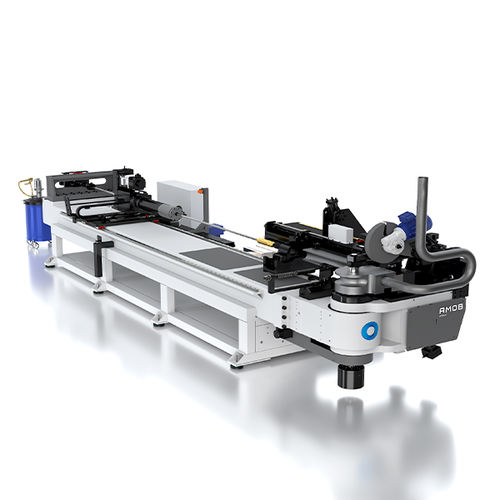

油圧式折り曲げ機 CH Booster Serie

ボイラーチューブ用CNC

The CH booster is AMOB’s perfect answer to industries with specific needs such as (heat-exchangers, ventilation, air conditioning and refrigeration) giving your business the boost it needs! The booster mechanism is integrated into the follower pressure die – parallel to the centerline of the tube. To ensure proper grip of the tube, a secondary clamp is used behind the pressure die assist. To control the booster effect during the bend, operator can dynamically manage its behavior throughout the bending process – from 0° to 192° – using the machine software interface. By adding a split die system, a cutting system, and laser reference system to a CH Booster, our customer can maximize the machine’s full potential, minimising auxiliary production processes like welding, cutting, inspection and more. Combining the booster system with specifically designed tools, we manage to achieve low ovality and reduced loss of wall thickness even when bending mandrelless on >0,8D CLR/OD ratios.
